Cable clip for hole (round)/for stud, ∅6.3 - 6.7 mm, Dmin=14.0mm, Dmax=17.0mm, ∅M5
Art.-No. 151-03353 | CHP3W14-17-PA46/AEM-OG |  Details

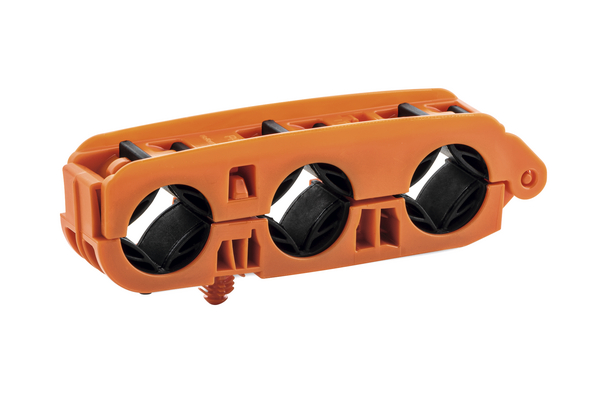

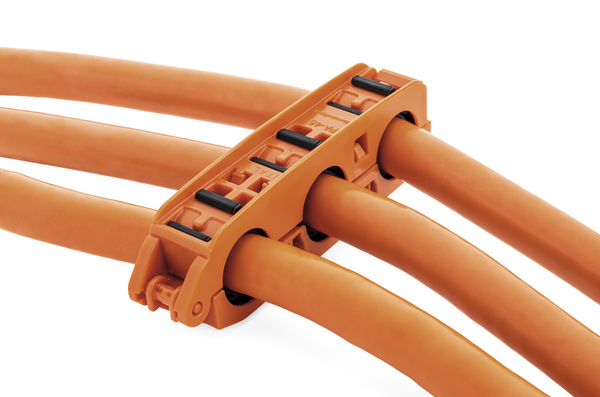

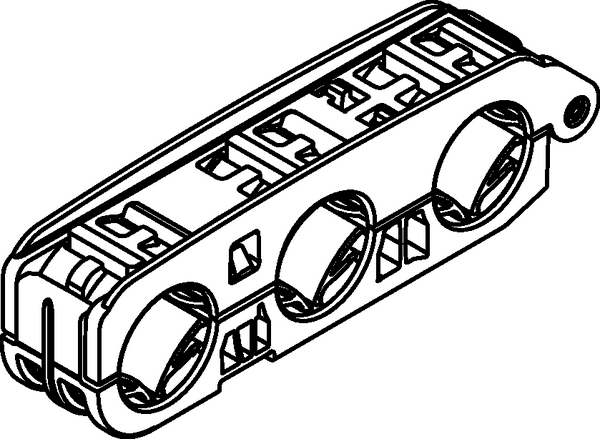

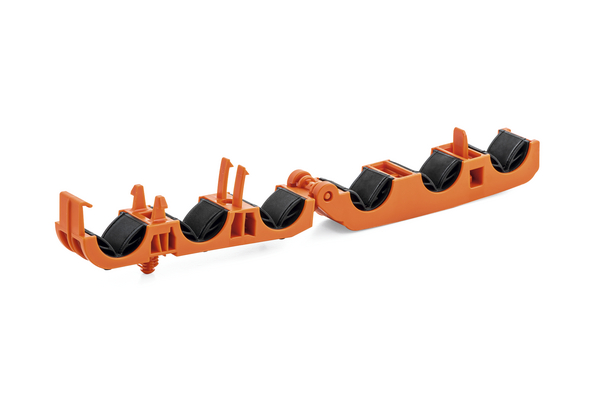

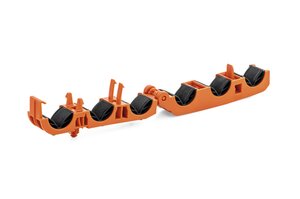

Triple high voltage clip in PA46 / AEM with firtree.

    • Soft AEM inserts protect the wiring from crushing, abrasion and chemicals

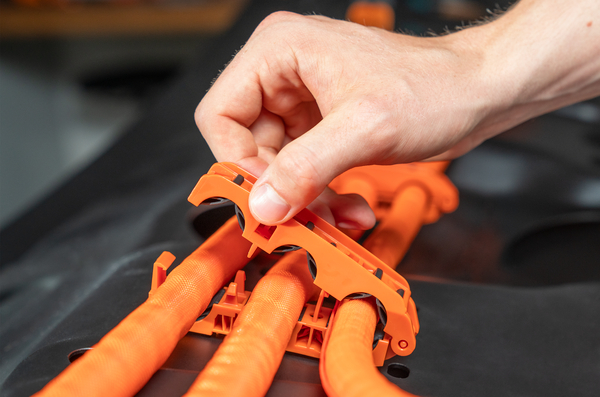

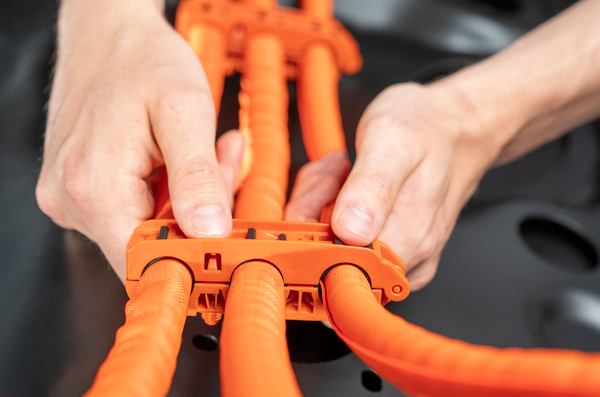

    • Easy installation thanks to the special closure
    • In PA46 for temperatures up to +150°C
    • For fixing on 5.0 mm studs and for round holes with anti-rotation pin
    • For 3 cables or multiple routing
    • Hinge lock = 14.0 -17.0 mm bundle diameter
    Show more
    Add to watchlist
    Downloads Datasheet
    Application These clips are designed for the installation of high voltage cables in the automotive sector or electric vehicles in general, but can be used for any application requiring parallel wiring. The sturdy clip fixes and guides cables and corrugated conduits in a stable and optimal way, keeping the wiring parallel even in the presence of strong vibrations. The HV-Clips are available as CLP, CMP and CHP parts. The "L" stands for lower performance (EPDM), the "M" for medium performance (heat resistant + AEM) and the "H" for high performance (PA46 + AEM). The HV clips can also be produced with other material combinations or are already available.
    Colour Orange (OG)
    Key product features vibration absorbing, sealed, for multiple routing
    Material Polyamide 4.6 (PA46), Ethylene acrylate copolymer (AEM)
    PART DESCRIPTION CHP3W14-17-PA46/AEM-OG
    Pack Cont. 125pcs.
    Package Content packed in box
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Type CHP3W14-17
    Bundle Diameter max (metric) 17.0mm
    Bundle ∅ 14.0-17.0mm
    Bundle ∅ min. 14.0mm
    Height (H) 33.9mm
    Length (L) 108.9mm
    Stud ∅ M5
    Weight/Unit 0.03kg
    Width (W) 20.5mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin IT
    Customs Number 39269097
    GTIN-13 / EAN 4031026651682
    Packaging 3 - Height (m) 0.22m
    Packaging 3 - Length (m) 0.38m
    Packaging 3 - Qty 125
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0226m³
    Packaging 3 - Weight (kg) 4.25kg
    Packaging 3 - Width (m) 0.27m
    Packaging 4 - Height (m) 1.244m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 5000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.194m³
    Packaging 4 - Weight (kg) 191.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
