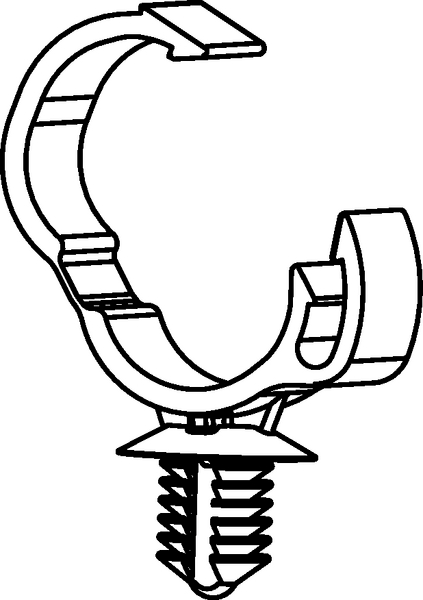

Corrugated tube clip for hole (round)/with pipe/tube holder, nom∅16.0mm, black, 2000pcs.
Art.-No. 151-02577 | CTC16FT8-PA66HS-BK |  Details

The tubing is clicked into the CTC clamp and is held firmly.

    • CTC clamps for a variety of nominal diameters
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Tube is guided accurately by clicking
    • Axial slipping is prevented by the inside profile of the clamp
    Show more
    Add to watchlist
    Downloads Datasheet
    Application CTC clamps are used for example in the automotive, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.
    Colour Black (BK)
    Fixation Method Fir Tree
    Key product features for convoluted tubes or with rib, removable, lockable
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION CTC16FT8-PA66HS-BK
    Pack Cont. 2000pcs.
    Package Content packed in carton
    Product Family CTC-Series
    Product Group Fixing elements for corrugated tubing, with fir tree
    Type CTC16FT8
    Attach to Ø 16.0
    Bundle Diameter max (metric) 8.2mm
    Bundle ∅ 7.8-8.2mm
    Bundle ∅ min. 7.8mm
    Disc ∅ 16.0mm
    Height (H) 47.8mm
    Height (H2) 11.5mm
    Length (L) 31.5mm
    Nominal ∅ 16.0mm
    Panel Thickness max. 0.6-5.5mm
    Width (W) 14.0mm
    for Hole ∅ (FH) 7.8 - 8.2 mm
    for Panel Thickness min - max 0.6 - 5.5 mm
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026613802
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
