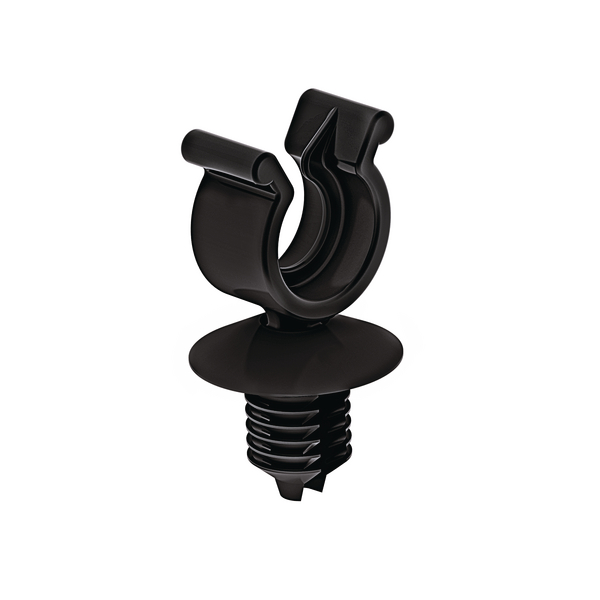

Corrugated tube clip for hole (round), nom∅7.5mm, black, 500pcs.
Art.-No. 151-14313 | CTC7.5FT6LG-PA66HIRHS-BK |  Details

    • CTC clamps for a variety of nominal diameters
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Tube is guided accurately by clicking
    • Axial slipping is prevented by the inside profile of the clamp
    Show more
    Add to watchlist
    Downloads CAD-Download Datasheet
    Application CTC clamps are used for example in the automotive, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.
    Colour Black (BK)
    Conduit ∅ IWS 7,5-8,5
    Fixation Method Fir Tree
    Key product features removable, for convoluted tubes or with rib
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CTC7.5FT6LG-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family CTC-Series
    Product Group Fixing elements for corrugated tubing, with fir tree
    Short Description Fixing Elements with Fir Tree for Corrugated Tubing black
    Type CTC7.5FT6LG
    Attach to Ø NW7.5
    Disc ∅ 16.0mm
    Height (H) 18.6mm
    Height (H2) 11.1mm
    Nominal ∅ 7.5mm
    Panel Thickness max. 0.75 - 6.0mm
    Weight/Unit 0.00093kg
    Width (W) 8.0mm
    for Hole ∅ (FH) 6.5 - 7.0 mm
    for Panel Thickness min - max 0.8 - 6 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026237800
    Packaging 1 - Height (m) 0.055m
    Packaging 1 - Length (m) 0.34m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00411m³
    Packaging 1 - Weight (kg) 0.553478kg
    Packaging 1 - Width (m) 0.22m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 11.88956kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 163.56kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
