Cable clip for edge, T=1.0 - 3.0mm, nom∅=5.8 - 6.8 mm
Art.-No. 151-03846 | EC1-3SPDHC6-7-PA66HSUV-BK |  Details

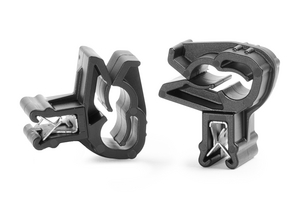

EdgeClip for direct fixation up to two solar cables.

    • for one or two solar cables
    • secure hold of the cables
    • simple change of cables in case of maintenance
    • for edges 1.0 - 3.0 mm
    Package size
    Add to watchlist
    Downloads Datasheet
    Application Our EC1-3SPDHC6-7 will help you lay solar cables. You can easily attach this article to your solar modules in order to guide up to two cables into the holder by simply pressing them in.
    Cable ∅ max 6.8mm
    Cable ∅ min 5.8mm
    Colour Black (BK)
    Fixation Method EdgeClip, sideway
    Key product features for multiple routing, for direct fixation, for faster processing
    Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    PART DESCRIPTION EC1-3SPDHC6-7-PA66HSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family EdgeClip series for solar panels
    Product Group Fixing element for solar cables
    Short Description EdgeClip for edges 1.0 - 3.0 mm, for parallel routing for up to two solar cables.
    Type EC1-3SPDHC6-7
    Attach to Ø 5.8 - 6.8

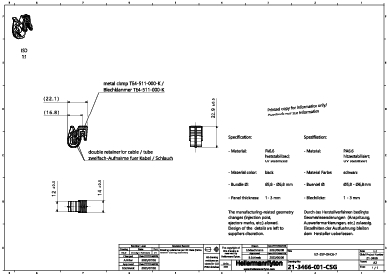

    Bundle Diameter Nom. (ND) 5.8 - 6.8 mm
    Height (H) 20.9mm
    Length (L) 21.9mm
    Panel Thickness max. 1.0 - 3.0mm
    Weight/Unit 0.00262kg
    Width (W) 14.0mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026699219
    Packaging 1 - Height (m) 0.085m
    Packaging 1 - Length (m) 0.43m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01133m³
    Packaging 1 - Weight (kg) 2.641815kg
    Packaging 1 - Width (m) 0.31m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
