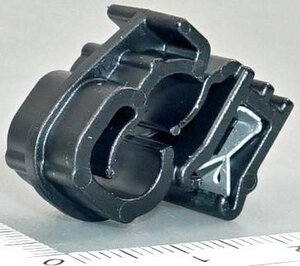

Cable clip for edge, T=1.0 - 3.0mm, nom⌀=5.8 - 6.8 mm
Art.-No. 151-04387 | EC1-3SPDHC6-7-PA11-BK |

More products in this product group:

Application	Our EC1-3SPDHC6-7 will help you lay solar cables. You can easily attach this article to your solar modules in order to guide up to two cables into the holder by simply pressing them in.
Cable ⌀ max	6.8mm
Cable ⌀ min	5.8mm
Colour	Black (BK)
Fixation Method	EdgeClip, sideway
Key product features	for multiple routing, for direct fixation, for faster processing
Material	Polyamide 11 (PA11)
PART DESCRIPTION	EC1-3SPDHC6-7-PA11-BK
Pack Cont.	100pcs.
Package Content packed in	box
Product Family	EdgeClip series for solar panels
Product Group	Fixing element for solar cables
Short Description	EdgeClip for edges 1.0 - 3.0 mm, for parallel routing for up to two solar cables.
Type	EC1-3SPDHC6-7

ELV compliant (Article 4 - 2)	YES
Hazardous Goods	No
ROHS compliant	Yes
Specifications
	Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. ReSource highlights HellermannTyton products that are made from reccled waste or from virgin materials with relatively lower carbon emissions. Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability.
