Cable clip for adhesive use, ∅3.1 mm
Art.-No. 151-00306 | FKH25A-PA66HIR-BK |  Details

FKH Flat ribbon cable clip, screwable.

    • One-piece fixing mount for flat ribbon and round cables
    • Increased mounting area ensures proper bonding
    • Quick and easy installation
    • Can be released and re-used easily
    • Cable is gently fastened due to soft wings
    Show more
    Package size
    Add to watchlist
    Downloads Datasheet
    Application FKH mounts are designed to retain flat ribbon and round cables commonly used in information technology applications, in entertainment electronics or for connecting sensors. As each installation scenario is individual, FKH mounts are available in different dimensions and can be supplied as self adhesive and/or screwable versions.
    Colour Black (BK)
    Fixation Method Pasting / Stick
    Key product features for multiple routing
    Material Polyamide 6.6, high impact modified (PA66HIR)
    PART DESCRIPTION FKH25A-PA66HIR-BK
    Pack Cont. 25pcs.
    Package Content packed in pcs.
    Product Family FKH-Series, self-adhesive
    Product Group Flat ribbon and round cable mounts
    Type FKH25A
    Variant Mounting clip
    Attach to Ø 25.0
    For Cable Width max. 25.0mm
    Length (L) 31.0mm
    Weight/Unit 0.00443kg
    Width (W) 25.0mm
    Width (W2) 22.0mm
    for Hole ∅ (FH) 3.1 mm
    Adhesive Acrylate with base of polyurethane foam
    Adhesive Operating Temperature to +105 °C
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB (excluding adhesive)
    Hazardous Goods No
    Operating Temperature -40 °C to +80 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026265643
    Packaging 1 - Height (m) 0.035m
    Packaging 1 - Length (m) 0.45m

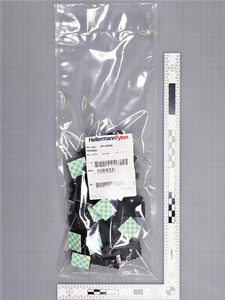

    Packaging 1 - Qty 25
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0026m³
    Packaging 1 - Weight (kg) 0.122925kg
    Packaging 1 - Width (m) 0.165m
    Packaging 2 - Type carton
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 1800
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 8.2kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 21600
    Packaging 4 - Type pallet
    Packaging 4 - Weight (kg) 119.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
