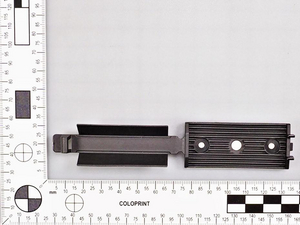

Cable clip for adhesive use, ∅3.1 mm
Art.-No. 151-15500
| FKH50A-PA66HIR-BK
|
Details
- One-piece fixing mount for flat ribbon and round cables
- Increased mounting area ensures proper bonding
- Quick and easy installation
- Can be released and re-used easily
- Cable is gently fastened due to soft wings
More products in this product group:
| Application | FKH mounts are designed to retain flat ribbon and round cables commonly used in information technology applications, in entertainment electronics or for connecting sensors. As each installation scenario is individual, FKH mounts are available in different dimensions and can be supplied as self adhesive and/or screwable versions. |
| Colour | Black (BK) |
| Fixation Method | adhesive |
| Key product features | for multiple routing |
| Material | Polyamide 6.6, high impact modified (PA66HIR) |
| PART DESCRIPTION | FKH50A-PA66HIR-BK |

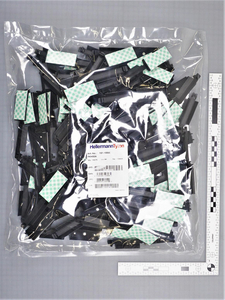

| Pack Cont. | 100pcs. |
| Package Content packed in | pcs. |
| Product Family | FKH-Series, self-adhesive |
| Product Group | Flat ribbon and round cable mounts |
| Short Description | Flat Ribbon Cables Self Adhesive / Screw Fixing 56,5x25 mm black |
| Type | FKH50A |
| Variant | Mounting clip |
Download
| Adhesive | Acrylate with base of polyurethane foam |
| Adhesive Operating Temperature | to +105 °C |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB (excluding adhesive) |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +80 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UV-Stabilised | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026208961 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.37m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00488m³ |
| Packaging 1 - Weight (kg) | 0.763135kg |
| Packaging 1 - Width (m) | 0.33m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 4.450675kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.235m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 10000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.186m³ |
| Packaging 4 - Weight (kg) | 110.0kg |
| Packaging 4 - Width (m) | 0.8m |
