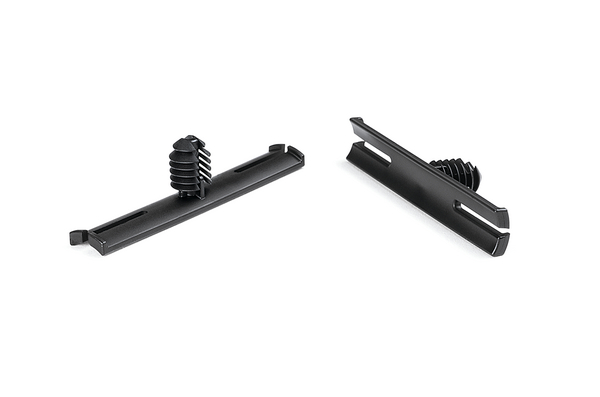

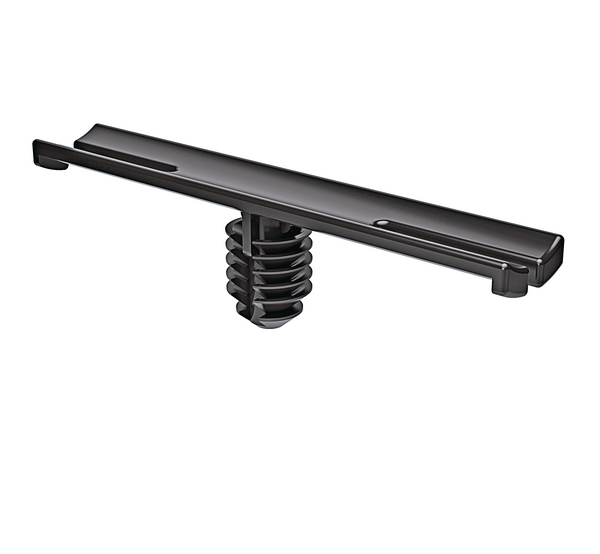

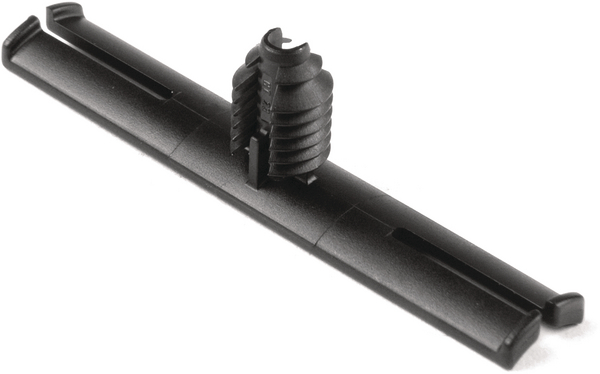

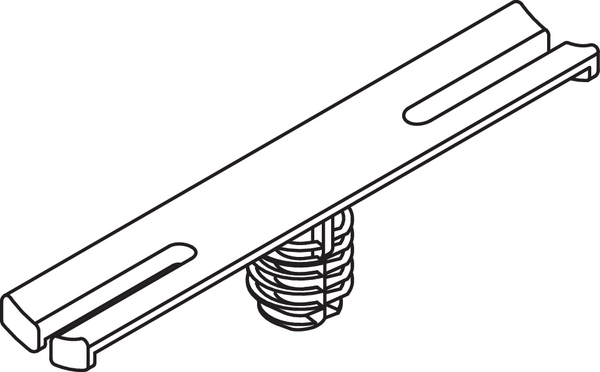

Bundling clip for hole (round), L=55.0mm, natural, 10000pcs.
Art.-No. 151-00020 | TC2FT6LG-PA66HIRHS-NA |  Details

Bundling Clip for round holes 6.5 mm.

    • Easy to install without the need for a tool
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Holding tabs prevent the tie slipping sideways
    • Versions for oval holes feature anti-twist protection
    Show more
    Package size
    Add to watchlist
    Downloads CAD-Download Datasheet
    Application Widespread use in cable harness production; a quick and easy means of fixing cables and lines securely in various parts of cars.
    Colour Natural (NA)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION TC2FT6LG-PA66HIRHS-NA

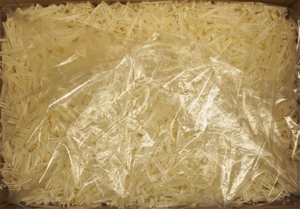

    Pack Cont. 10000pcs.
    Package Content packed in bag
    Product Family TC2FT6LG
    Product Group Bundling Clips with Fir Tree
    Short Description Bundling Clip, round hole 6.3 - 7.0 mm, fir tree, high impact modified, heat stabilised, natural
    Type TC2FT6LG

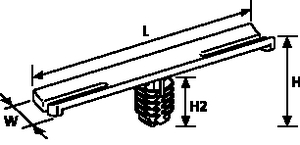

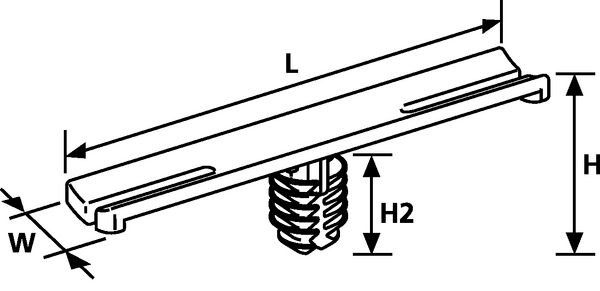

    Bundling Bar Length 55.0mm
    Height (H) 12.5mm
    Height (H2) 11.0mm

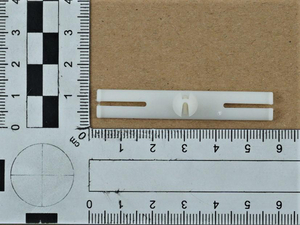

    Length (L) 55.0mm
    Weight/Unit 0.00095kg
    Width (W) 9.0mm
    for Hole ∅ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 0.6 - 5.1 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026250212
    Packaging 1 - Qty 10000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 10.066663kg
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.886663kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 151.644kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
