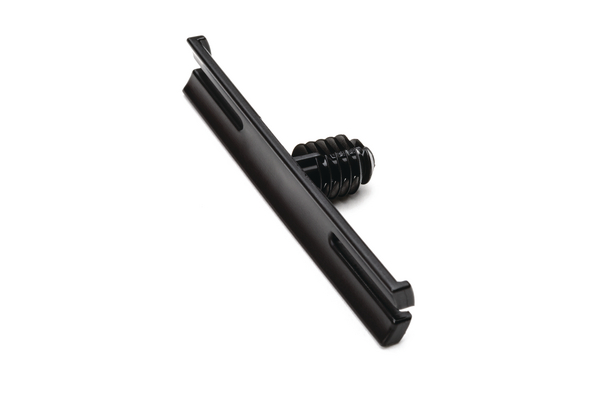

Bundling clip for hole (round), L=55.0mm, black, 14000pcs.
Art.-No. 155-30802
| TC2FT6LG-PA66HIRHS-BK
|
Details
- Easy to install without the need for a tool
- One fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- Holding tabs prevent the tie slipping sideways
- Versions for oval holes feature anti-twist protection
More products in this product group:
| Application | Widespread use in cable harness production; a quick and easy means of fixing cables and lines securely in various parts of cars. |
| Anti rotation (Yes / No) | NO |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | TC2FT6LG-PA66HIRHS-BK |
| Pack Cont. | 14000pcs. |
| Package Content packed in | bag |
| Product Family | TC2FT6LG |
| Product Group | Bundling Clips with Fir Tree |
| Short Description | Bundling Clip 55 mm, Fir Tree, high impact modified, heat stabilised, black |
| Type | TC2FT6LG |
| Wings on clip base (Yes / No) | YES |
|
|
| Bundling Bar Length | 2.17" |
| Bundling Bar Length | 55.0mm |
| Fixing Hole Shape | Circular |
| Height (H) | 12.5mm |
| Height (H2) | 11.0mm |
| Length (L) | 55.0mm |
| Length of Fir Tree | 11.0mm |
| Panel Thickness max. | 0.6 - 5.1mm |
| Weight/Unit | 0.000986kg |
| Width (W) | 9.0mm |
| for Hole ∅ (FH) | 6.3 - 7.0 mm |
| for Panel Thickness min - max | 0.6 - 5.1 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026217536 |
| Packaging 1 - Qty | 14000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 13.870663kg |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 14000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 14.690663kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 168000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 197.292kg |
| Packaging 4 - Width (m) | 0.8m |
