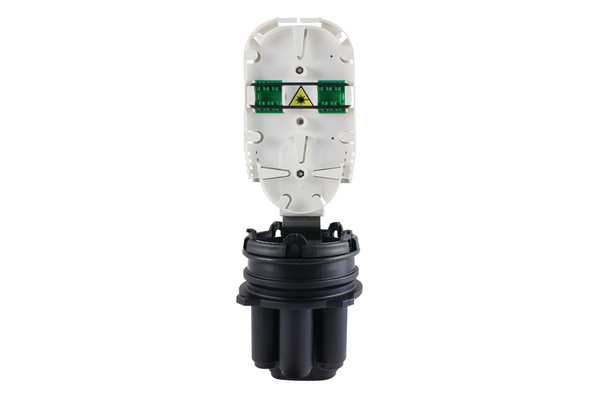

FST 4 Port Closure
Art.-No. 857-00850 | FSTTB-AXXFA11 |  Details

FST 4 Port Closure with 2 Small Hellapon Tray.

    • Maximum 12 fibre splice capacity
    • 3 round ports and 1 oval port
    • Supplied with 1 x Hellapon Small Trays with 3A Splice Bridges
    • Maximum 12 splices per tray
    • Splitter accommodation
    • Cablelok compatible for all port sizes
    • Quick release cover
    Show more
    Add to watchlist
    Colour Black (BK)
    Content FST 4 Port Base
    A-Length Cover (Dome)
    Quick Release Clamp
    Sealing ’O’ Ring
    Tray Support Frame
    1 x Hellapon Small Trays with 3A Splice Bridges
    Anchor Fixing Kit
    Transportation Tubing
    Isopropyl Alcohol Wipes
    Desiccant
    Installation Guide
    Marker Kit
    Red Marker 1 - 12
    Green Marker 1 – 12
    Material Polypropylene (PP)
    Method of Sealing Cablelok
    PART DESCRIPTION FSTTB-AXXFA11
    Pack Cont. 1Set
    Package Content packed in kit
    Port LM, B
    Port count 1, 3
    Product Family A Length
    Product Group FST 4 Port Closure
    Qty Trays 1
    Splice Capacity 12
    Technical Description The FST 4 Port closure is supplied with a Polypropylene base. The base configuration of 3 round ports and 1 oval port covers a cable diameter range of 4.0 – 16.5mm when using Cablelok mechanical seals and 6.0 – 22.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and is supplied with 1 x Hellapon Small Tray with 3A Splice Bridges giving a maximum of 12 fibre splices. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
    Type FSTTB-AXXFA11
    Type of Tray Hellapon Small
    Variant Outdoor Enclosure
    D1 110mm
    D1 4.3"
    D2 4.3"
    D2 110mm
    Length 310mm
    Hazardous Goods No
    Country of Origin GB
    Customs Number 85176200
    GTIN-13 / EAN 5022660138331
    Packaging 1 - Height (m) 0.55m
    Packaging 1 - Length (m) 0.15m
    Packaging 1 - Qty 1
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.01238m³
    Packaging 1 - Weight (kg) 1.0kg
    Packaging 1 - Width (m) 0.15m
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
    UNSPSC Key 43223338
