FST 13 Port Closure
Art.-No. 857-40474 | FSTTB-AXXTA25 |  Details

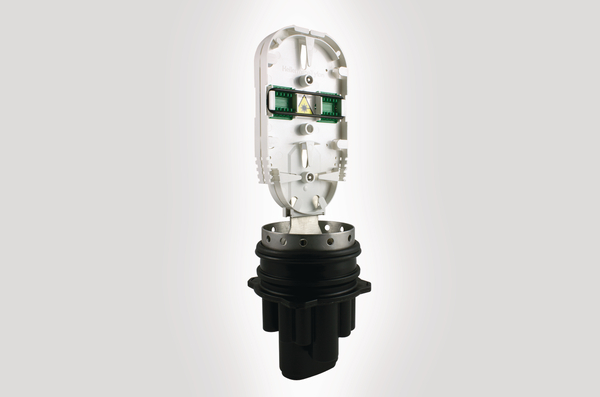

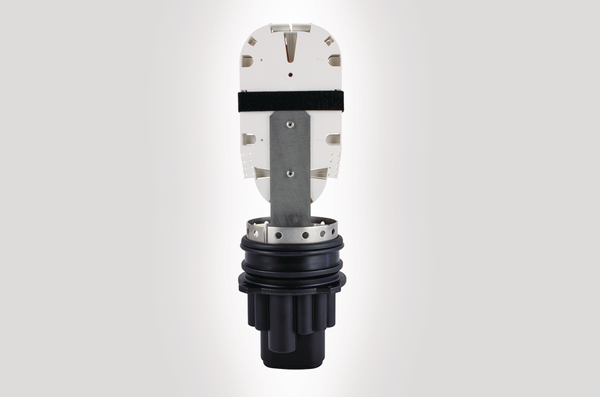

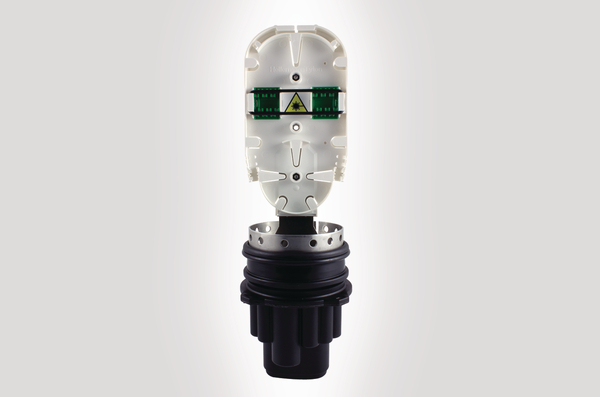

FST 13 port Closure with 2 Small Hellapon Trays

    • Maximum 48 fibre splice capacity
    • 12 round ports and 1 oval port
    • Supplied with 2 x Hellapon Small trays with Crimp/ANT bridges bridges
    • Maximum 24 splices per tray
    • Splitter accommodation
    • Cablelok compatible for all port sizes
    • Quick release cover
    Show more
    Add to watchlist
    Colour Black (BK)
    Content FST 13 Port Base
    Anchor Ring
    A-Length Cover (Dome)
    Quick Release Clamp
    Sealing ’O’ Ring
    Tray Support Frame
    2 x Hellapon Small Trays with Crimp/ANT Splice Bridges
    Anchor Fixing Kit (2)
    Transportation Tubing
    Isopropyl Alcohol Wipes
    Desiccant
    Installation Guide
    Marker Kit
    Red Marker 1 - 12
    Green Marker 1 – 12
    Method of Sealing Cablelok
    PART DESCRIPTION FSTTB-AXXTA25
    Package Content packed in kit
    Port LM, B, R
    Port count 1, 2, 10
    Product Family A Length
    Product Group FST 13 Port Closure
    Qty Trays 2
    Splice Capacity 48
    Technical Description The FST 13 Port closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 1.7 – 16.5mm when using Cablelok mechanical seals. The mounting system is manufactured from Grade 304 stainless steel and is supplied with 2 x Hellapon Small trays with Crimp/ANT bridges giving a maximum of 48 fibre splices. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
    Type FSTTB-AXXTA25
    Type of Tray Hellapon Small
    Variant Outdoor Enclosure

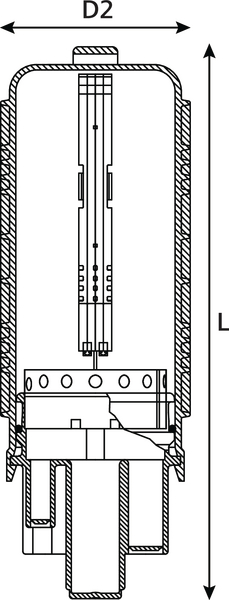

    D1 110mm
    D2 110mm
    Length 310mm
    Country of Origin GB
    GTIN-13 / EAN 5022660159305
    Packaging 1 - Height (m) 0.55m
    Packaging 1 - Length (m) 0.15m
    Packaging 1 - Qty 1
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.01238m³
    Packaging 1 - Weight (kg) 1kg
    Packaging 1 - Width (m) 0.15m
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
