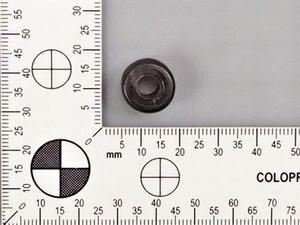

Cable grommet, ∅10.0 mm, black, 1000pcs.
Art.-No. 633-02180 | HV1218-PVC-FR-BK |  Details

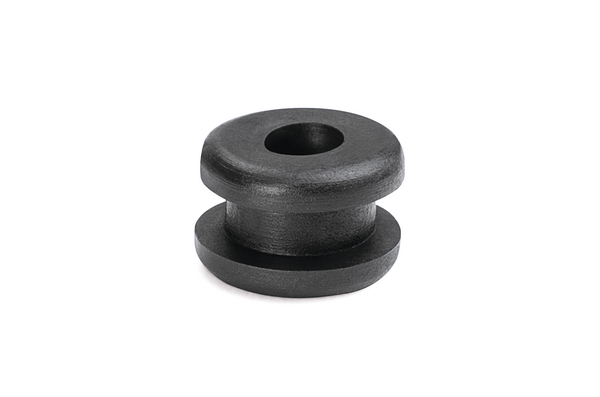

Edge Protection Grommet - HV1218.

    • Protects cables from sharp edges
    • Provides additional strain relief
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Add to watchlist
    Downloads CAD-Download Datasheet
    Application Edge protection grommets are used wherever cable and wires are routed through apertures. HellermannTyton grommets offer excellent mechanical protection.
    Cable ∅ max 6.0mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV1218-PVC-FR-BK
    Pack Cont. 1000pcs.
    Package Content packed in pcs.
    Product Family Edge protection grommets
    Product Group For apertures
    Short Description Edge protection grommets black, outside diameter: 14.0mm, inside diameter: 6.0mm, height: 9.0mm
    Type HV1218
    Variant Round
    Diameter (D) 6.0mm
    Height (H) 9.0mm
    Height (H2) 4.0mm
    Outside Ø (OD) 14.0mm
    Shore Hardness A 55±5
    Weight/Unit 0.000915kg
    for Hole ∅ (FH) 10.0 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Nato number 5325-12-195-9622
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026186405
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.43m

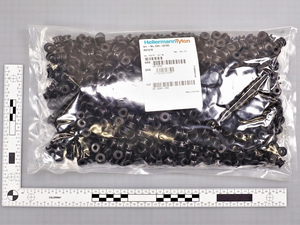

    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00817m³
    Packaging 1 - Weight (kg) 0.943kg
    Packaging 1 - Width (m) 0.38m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
    UNSPSC Key 39131603
