Cable grommet, ∅11.0 mm, black, 1000pcs.
Art.-No. 633-03010 | HV1301-PVC-FR-BK |  Details

Edge protection grommets.

    • Protects cables from sharp edges
    • Provides additional strain relief
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Add to watchlist

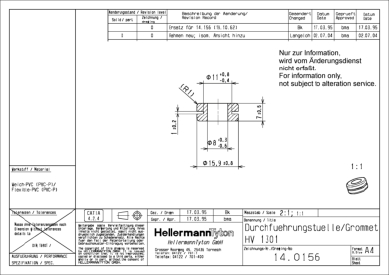

    Downloads CAD-Download Datasheet
    Application Edge protection grommets are used wherever cable and wires are routed through apertures. HellermannTyton grommets offer excellent mechanical protection.
    Cable ∅ max 9.0mm
    Cable ∅ min 8.0mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV1301-PVC-FR-BK
    Pack Cont. 1000pcs.
    Package Content packed in pcs.
    Product Family Edge protection grommets
    Product Group For apertures
    Short Description Edge protection grommets black
    Type HV1301
    Variant Round
    Bundle Diameter max (metric) 15.9mm
    Bundle ∅ 15.9mm
    Diameter (D) 8.0mm
    Height (H) 7.0mm
    Height (H2) 1.0mm
    Outside Ø (OD) 15.9mm
    Shore Hardness A 55±5
    Weight/Unit 0.0011kg
    for Hole ∅ (FH) 11.0 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Nato number 5325-12-163-9539
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026186429
    Packaging 1 - Height (m) 0.035m
    Packaging 1 - Length (m) 0.35m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0049m³
    Packaging 1 - Weight (kg) 1.100001kg
    Packaging 1 - Width (m) 0.4m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
    UNSPSC Key 39131603
