Cable grommet, ∅9.0 mm, black, 1000pcs.
Art.-No. 632-01010 | HV2101-PVC-FR-BK |  Details

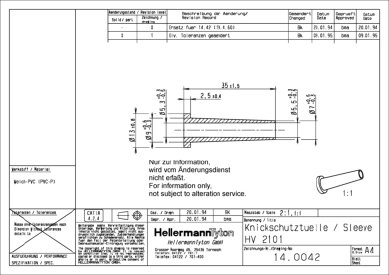

Bend Protection Grommet - HV2101.

    • Routes cables free of kinks and breakage
    • Provides additional strain relief
    • Flexible and easy to apply
    • High resistance to chemicals, environmental effects and aging
    Add to watchlist
    Downloads Datasheet
    Application Bend protection grommets are typically used for protection cables and wires at the apertures in casings.
    Cable ∅ max 6.5mm
    Cable ∅ min 5.5mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV2101-PVC-FR-BK
    Pack Cont. 1000pcs.
    Package Content packed in pcs.
    Product Family Bend protection grommets
    Product Group Bend protection grommets
    Short Description Bend protection grommets black, outside diameter: 13.0mm, inside diameter: 5.3mm
    Type HV2101
    Variant Open
    Diameter (D) 5.3mm
    Length (L) 35.0mm
    Outside Ø (OD) 13.0mm
    Outside ∅ (OD2) 7.0mm
    Shore Hardness A 55±5
    Weight/Unit 0.001554kg
    for Hole ∅ (FH) 9.0 mm
    ∅ (D2) 5.5mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Nato number 5975-12-145-9325
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026185972
    Packaging 1 - Height (m) 0.055m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01409m³
    Packaging 1 - Weight (kg) 1.597597kg
    Packaging 1 - Width (m) 0.545m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
