Cable grommet, ∅8.8 mm, black, 1000pcs.
Art.-No. 632-02100 | HV2210-PVC-FR-BK |  Details

Bend Protection Grommet - HV2210.

    • Routes cables free of kinks and breakage
    • Provides strain relief
    • Flexible and easy to apply
    • High resistance to chemicals und environmental influences
    Add to watchlist
    Downloads Datasheet
    Application Bend protection grommets are typically used to protect cables and wires at the apertures in casings.
    Cable ∅ max 7.5mm
    Cable ∅ min 6.5mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV2210-PVC-FR-BK
    Pack Cont. 1000pcs.
    Package Content packed in pcs.
    Product Family Bend protection grommets
    Product Group Bend protection grommets

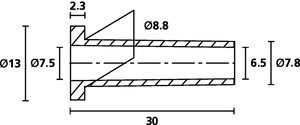

    Short Description Bend protection grommets black, outside diameter: 13.0mm, inside diameter: 7.5mm
    Type HV2210
    Variant Open
    Diameter (D) 7.5mm
    Length (L) 30.0mm
    Outside Ø (OD) 13.0mm
    Outside ∅ (OD2) 7.8mm
    Shore Hardness A 55±5
    Weight/Unit 0.0009kg
    for Hole ∅ (FH) 8.8 mm
    ∅ (D2) 6.5mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026186115
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 0.921815kg
    Packaging 1 - Width (m) 0.41m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
