Right-Angle Shapes, VG style
Art.-No. 411-52015 | 1152-50-L-FPMX-BK |  Details

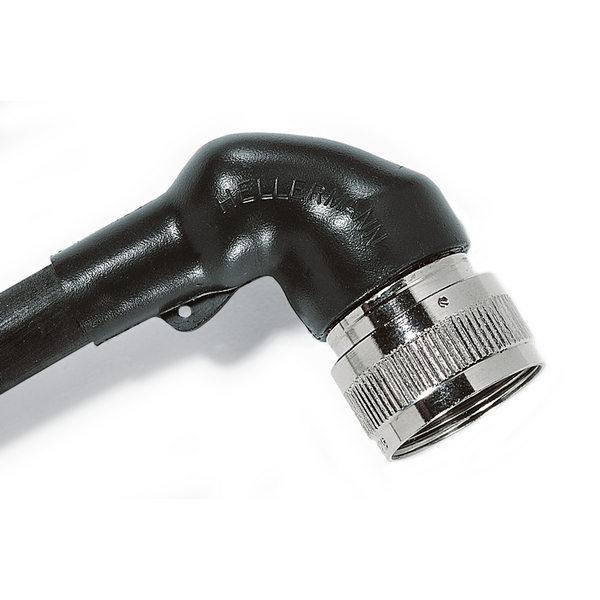

1152-4-G recovered onto a connector.

    • Used in conjunction with a circular grooved adaptor
    • Provides strain relief and an environmental seal
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Fluoroelastomer, cross-linked (FPMX)
    PART DESCRIPTION 1152-50-L-FPMX-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1100 Series, with rib
    Product Group Right-Angle Shapes, VG style
    Type 1152-50-L
    Variant For plug
    Angle 90
    Flexibility Flexible
    HW ± 20 % 1.3mm
    JW ± 30 % 0.5mm
    R ± 10 % 25mm
    S nom. 10mm
    V max. 3.3mm
    V ± 20% 1mm
    Weight/Unit 0.003kg
    ∅H max. b 10.5mm
    ∅H min. a 24mm
    ∅J max. b 6mm
    ∅J min. a 12mm
    Designation as per VG-Norm VG 95343 T06 E 004 A
    Dielectric Strength 9kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +200 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 13MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660415098
    Packaging 1 - Height (m) 0.030m
    Packaging 1 - Length (m) 0.120m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00036m³
    Packaging 1 - Weight (kg) 0.003kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
