Right-Angle Shapes, VG style
Art.-No. 411-57483 | 1157-4-G-PO-X-BK |  Details

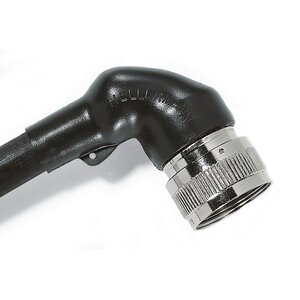

1152-4-G recovered onto a connector.

    • Used in conjunction with a circular grooved adaptor
    • Provides strain relief and an environmental seal
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1157-4-G-PO-X-BK
    Package Content packed in pcs.
    Product Family Helashrink 1100 Series, with rib
    Product Group Right-Angle Shapes, VG style
    Shrink Ratio up to 3:1
    Type 1157-4-G
    Variant For plug
    Angle 90
    Flexibility semi rigid
    HW ± 20 % 2mm
    JO ± 10 % 16mm
    JW ± 20 % 1mm
    JW ± 30 % 1mm
    M nom. 30mm
    P ± 10 % 55mm
    R ± 10 % 45mm
    S nom. 16mm
    S ± 10 % 30mm
    T ± 10 % 1.7mm
    T ± 20 % 1.7mm
    V max. 3.3mm
    V ± 10 % 3mm
    Weight/Unit 0.013kg
    ∅H max. b 28.5mm
    ∅H min. a 43mm
    ∅J max. b 10mm
    ∅J min. a 43mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 15MPa
    Country of Origin GB
    GTIN-13 / EAN 4031026153384
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 1.300001kg
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
