Bottle Shapes, VG style
Art.-No. 401-52043 | 152-42-G-PO-X-BK |  Details

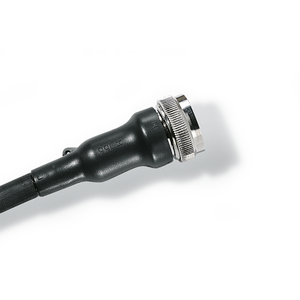

150 Series boot recovered onto a connectors.

    • Straight plug-and-socket connector terminal casing
    • Protects against environmental stresses for circular plug connectors
    • Inside lip for reinforced stress relief
    • Special 199-4-G fitting for audio plugs has external ribs for improved grip
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 152-42-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 150 Series, with rib
    Product Group Bottle Shapes, VG style
    Shrink Ratio 4:1
    Type 152-42-G
    Variant For plug
    Flexibility semi rigid
    HW ± 20 % 1.6mm
    JW ± 20 % 0.5mm
    JW ± 30 % 1.0mm
    P ± 10 % 38mm
    R nom. 21mm
    R ± 10 % 21mm
    S nom. 10mm
    T ± 20 % 1mm
    V max. 3.3mm
    V ± 10 % 3mm
    Weight/Unit 0.003kg
    Wire Size Range (mm²) 6.0-23.0mm
    ∅H max. b 10.5mm
    ∅H min. a 24mm
    ∅J max. b 6mm
    ∅J min. a 24mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-12-308-1658, 5970-12-317-9425, 5970-99-172-9510
    Operating Temperature -70 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660430626
    Packaging 1 - Height (m) 0.020m
    Packaging 1 - Length (m) 0.120m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00024m³
    Packaging 1 - Weight (kg) 0.003001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
