Bottle Shapes, VG style
Art.-No. 401-53001 | 153-41-B7-PO-X-BK |  Details

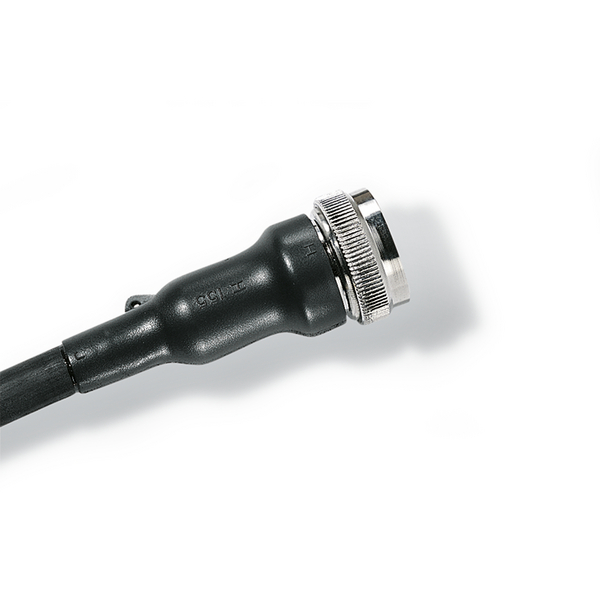

150 Series boot recovered onto a connectors.

    • Use in conjunction with circular grooved adaptors
    • Strengthened strain relief by usage of an additional inner lip
    • Excellent protection against environment impacts
    • Eliminates moisture ingress to harness
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 153-41-B7-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 150 Series, with rib
    Product Group Bottle Shapes, VG style
    Type 153-41-B7
    Variant For plug
    Flexibility semi rigid
    HW ± 20 % 1.8mm
    JO ± 10 % 16mm
    JW ± 20 % 0.5mm
    JW ± 30 % 0.5mm
    P ± 10 % 40mm
    R ± 10 % 13mm
    S nom. 16mm
    T ± 20 % 1mm
    V ± 10 % 3mm
    V ± 20% 3mm
    Weight/Unit 0.003kg
    ∅H max. b 14mm
    ∅H min. a 25mm
    ∅J max. b 3.5mm
    ∅J min. a 9mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    ELV compliant (Article 4 - 2) YES
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    Country of Origin GB
    Customs Number 39174000
    GTIN-13 / EAN 5022660679919
    Packaging 1 - Height (m) 0.030m
    Packaging 1 - Length (m) 0.120m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00036m³
    Packaging 1 - Weight (kg) 0.003001kg
    Packaging 1 - Width (m) 0.100m
    Packaging 2 - Qty 0
    Packaging 3 - Qty 0
    Packaging 4 - Qty 0
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
