Bottle Shapes, VG style
Art.-No. 401-57110 | 157-52-L-PO-X-BK |  Details

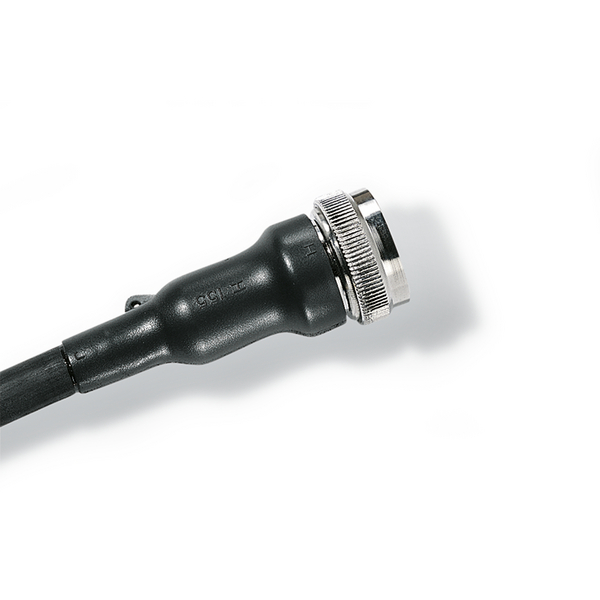

150 Series boot recovered onto a connectors.

    • Use in conjunction with circular grooved adaptors
    • Strengthened strain relief by usage of an additional inner lip
    • Excellent protection against environment impacts
    • Eliminates moisture ingress to harness
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, chemically cross-linked (PO-X)
    PART DESCRIPTION 157-52-L-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 150 Series, with rib
    Product Group Bottle Shapes, VG style
    Type 157-52-L
    Variant For plug
    HW ± 20 % 2.2mm
    JW ± 30 % 1.0mm
    P ± 10 % 79mm
    R nom. 41mm
    S nom. 20mm
    T ± 20 % 1.7mm
    Weight/Unit 0.023kg
    ∅H max. b 28mm
    ∅H min. a 42mm
    ∅J max. b 10.5mm
    ∅J min. a 20mm
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660690419
    Packaging 1 - Height (m) 0.050m
    Packaging 1 - Length (m) 0.200m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0012m³
    Packaging 1 - Weight (kg) 0.023001kg
    Packaging 1 - Width (m) 0.120m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
