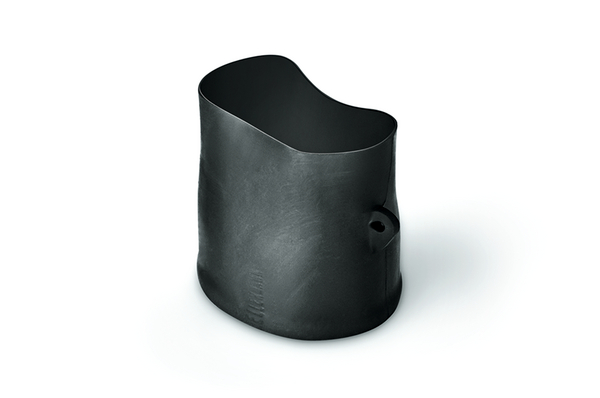

Bottle Shape with Rib VG-Style for Plugs black, PO-X
Art.-No. 401-60980 | 160-43-G-PO-X-BK |  Details

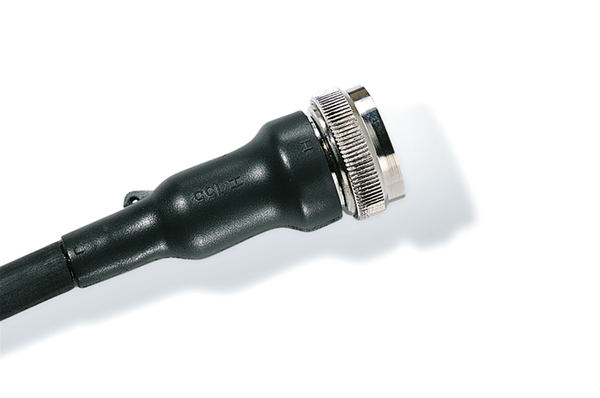

150 Series boot recovered onto a connectors.

    • Use in conjunction with circular grooved adaptors
    • Strengthened strain relief by usage of an additional inner lip
    • Excellent protection against environment impacts
    • Eliminates moisture ingress to harness
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 160-43-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in pcs.
    Product Family Helashrink 150 Series, with rib
    Product Group Bottle Shapes, VG style
    Short Description Bottle Shape with Rib VG-Style for Plugs black, PO-X
    Type 160-43-G
    Variant For plug
    Flexibility semi rigid
    HW ± 20 % 3.8mm
    JO ± 10 % 62.0mm
    JW ± 20 % 3.8mm
    JW ± 30 % 3.8mm
    P ± 10 % 213.0mm
    R nom. 113mm
    R ± 10 % 113mm
    S nom. 62.0mm
    T ± 20 % 2.0mm
    V max. 3.3mm
    V ± 10 % 3.0mm
    V ± 20% 3.0mm
    Weight/Unit 0.01kg

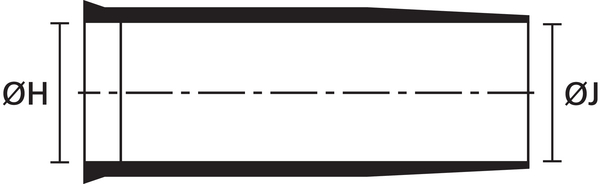

    ∅H max. b 58.0mm
    ∅H min. a 82.0mm
    ∅J max. b 27.0mm
    ∅J min. a 82.0mm
    Designation as per VG-Norm VG 95343 T06 C 004 A
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    ELV compliant (Article 4 - 2) YES
    Flammability ASTM D635
    Hazardous Goods No
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-12-354-9462
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Specifications VG 95343-6
    Country of Origin GB
    Customs Number 39174000
    GTIN-13 / EAN 5022660634949
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.15m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00135m³
    Packaging 1 - Weight (kg) 0.010001kg
    Packaging 1 - Width (m) 0.1m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
