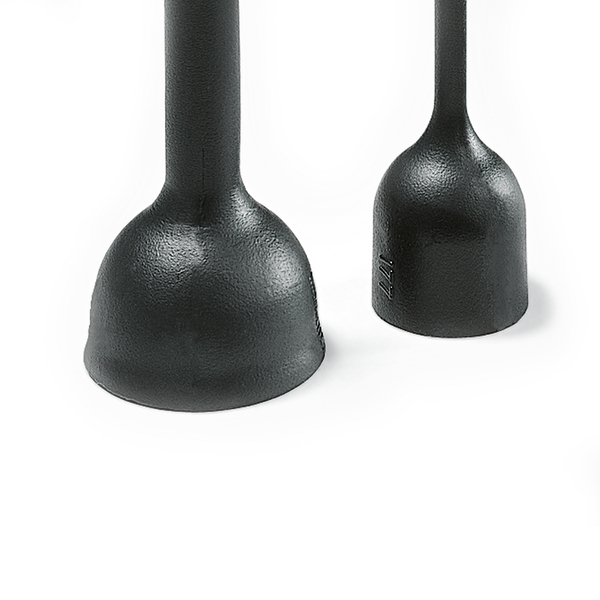

Bottle Shapes, VG style
Art.-No. 401-78010 | 178-5-L-FPMX-BK |  Details

177-1-G supplied / fully recovered.

    • Cable strain relief for partially loaded connectors
    • Small cable diameters
    • Use with our W24 adhesive for excellent chemical resistance
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Fluoroelastomer, cross-linked (FPMX)
    PART DESCRIPTION 178-5-L-FPMX-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 170 Series, with rib
    Product Group Bottle Shapes, VG style
    Type 178-5-L
    Variant For plug
    Flexibility Flexible
    HW ± 20 % 1.8mm
    JW ± 30 % 1.1mm
    P ± 10 % 84mm
    R nom. 12mm
    S nom. 51mm
    T ± 20 % 1mm
    V max. 3.3mm
    Weight/Unit 0.000009kg
    ∅H max. b 26mm
    ∅H min. a 34mm
    ∅J max. b 3mm
    ∅J min. a 6.2mm
    ELV compliant (Article 4 - 2) YES
    Flammability ASTM D635
    Hazardous Goods No
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +200 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 13MPa
    UV-Stabilised No
    Country of Origin GB
    Customs Number 39174000
    GTIN-13 / EAN 5022660440175
    Packaging 1 - Height (m) 0.12m
    Packaging 1 - Length (m) 0.18m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00086m³
    Packaging 1 - Weight (kg) 0.002kg
    Packaging 1 - Width (m) 0.04m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
