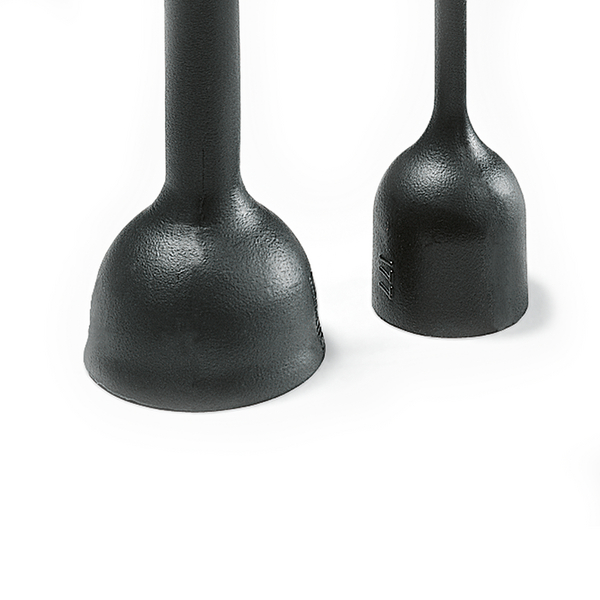

Bottle Shapes, VG style
Art.-No. 401-79013 | 179-5-L-FPMX-BK Details

  • Cable strain relief for partially loaded connectors
  • Small cable diameters
  • Use with our W24 adhesive for excellent chemical resistance
Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Material Fluoroelastomer, cross-linked (FPMX)
PART DESCRIPTION 179-5-L-FPMX-BK
Pack Cont. 1pc.
Package Content packed in bag
Product Family Helashrink 170 Series, with rib
Product Group Bottle Shapes, VG style
Type 179-5-L
Variant For plug
Flexibility Flexible
HW ± 20 % 1.8mm
JW ± 30 % 1.1mm
P ± 10 % 100mm
R nom. 12mm
S nom. 58mm
T ± 20 % 1.7mm
V max. 3.3mm
∅H max. b 34mm
∅H min. a 43.5mm
∅J max. b 3.5mm
∅J min. a 7.2mm
Flammability ASTM D635
Min. Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +200 °C
ROHS compliant Yes
Specifications
Tensile Strength 13MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660440823
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
