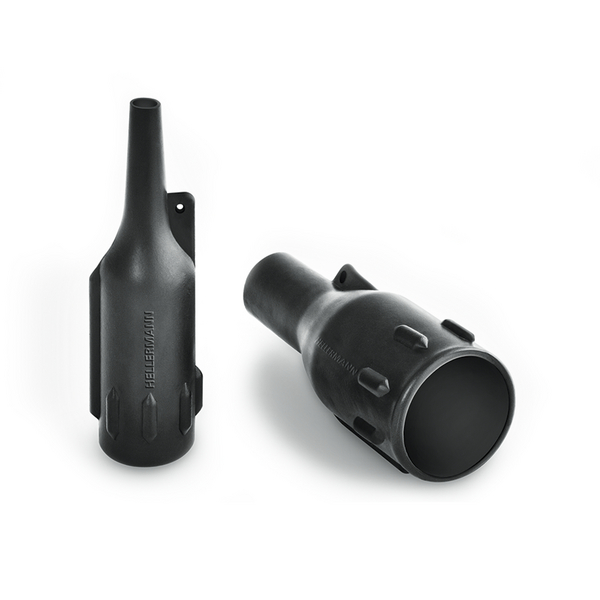

Bottle Shapes, VG style
Art.-No. 401-99006 | 199-5-G-PO-X-BK Details

  • Specifically for small audio connectors
  • Multiple external ribs to improve grip in harsh conditions
Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 199-5-G-PO-X-BK
Pack Cont. 1pc.
Package Content packed in bag
Product Family Helashrink 190 Series, with external ribs
Product Group Bottle Shapes, VG style
Type 199-5-G
Variant For plug
Flexibility semi rigid
HW ± 20 % 1.8mm
JW ± 30 % 0.5mm
P ± 10 % 70mm
R nom. 35mm
S nom. 20mm
T ± 20 % 1mm
Weight/Unit 0.011kg
∅H max. b 14mm
∅H min. a 20mm
∅J max. b 4.3mm
∅J min. a 11mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant (Article 4 - 2) YES
Flammability ASTM D635
Hazardous Goods No
Min. Shrink Temperature - °C +135 °C
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Specifications
Tensile Strength 15MPa
UV-Stabilised No
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660442223
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.13m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00033
Packaging 1 - Weight (kg) 0.011001kg
Packaging 1 - Width (m) 0.1m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
