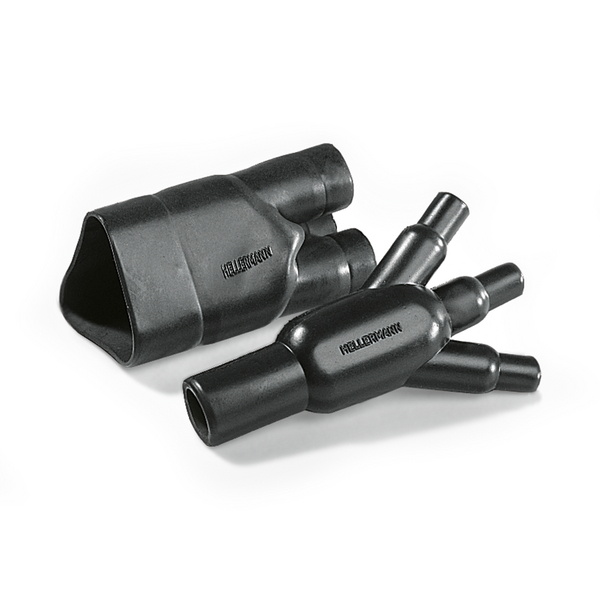

3-Way Outlet Shapes, VG style
Art.-No. 403-04001 | 304-1-B7-PO-X-BK |  Details

304-1-G supplied / fully recovered.

    • Cable strain relief and mechanical protection at harness transition points
    • All outlets clearly marked to aid orientation during installation
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 304-1-B7-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 300 Series
    Product Group 3-Way Outlet Shapes, VG style
    Shrink Ratio up to 3:1
    Type 304-1-B7
    Variant For 3-core cables
    Flexibility semi rigid
    HW ± 20 % 2.5mm
    JW ± 30 % 1.5mm
    P ± 10 % 93mm
    R ± 10 % 50mm
    S ± 10 % 50mm
    T ± 10 % 43mm
    W ± 20 % 1.5mm
    ∅H max. b 13.5mm
    ∅H min. a 27mm
    ∅J max. b 7mm
    ∅J min. a 13mm
    ∅J/K/L max. b 7mm
    ∅J/K/L min. a 13mm
    ∅K max. b 7mm
    ∅K min. a 13mm
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    ELV compliant (Article 4 - 2) YES
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-99-654-1128
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin GB
    Customs Number 39174000
    GTIN-13 / EAN 5022660451782
    Packaging 1 - Height (m) 0.025m
    Packaging 1 - Length (m) 0.130m
    Packaging 1 - Qty 1
    Packaging 1 - Volume (m³) 0.00033m³
    Packaging 1 - Weight (kg) 0.0120kg
    Packaging 1 - Width (m) 0.100m
    Packaging 2 - Qty 0
    Packaging 3 - Qty 0
    Packaging 4 - Qty 0
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
