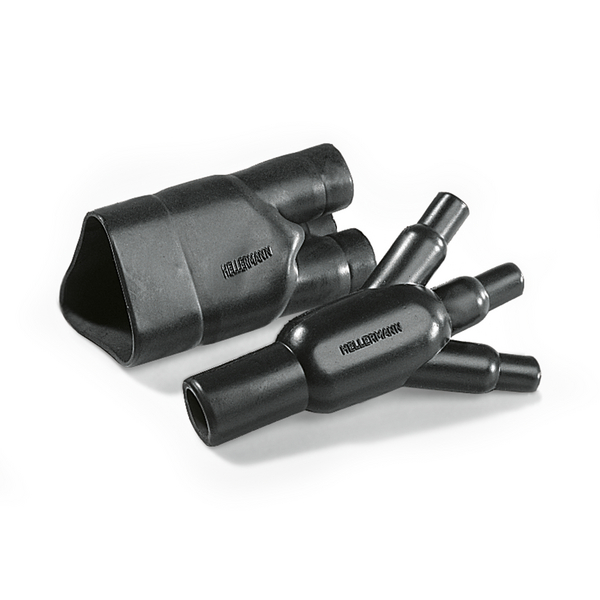

3-Way Outlet Shapes, VG style
Art.-No. 403-04019 | 304-2-G-PO-X-BK |  Details

304-1-G supplied / fully recovered.

    • Cable strain relief and mechanical protection at harness transition points
    • All outlets clearly marked to aid orientation during installation
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 304-2-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 300 Series
    Product Group 3-Way Outlet Shapes, VG style
    Type 304-2-G
    Variant For 3-core cables
    HW ± 30 % 2.5mm
    JW ± 30 % 1.5mm
    P ± 10 % 93mm
    R ± 10 % 43mm
    S ± 10 % 50mm
    ∅H max. b 13.5mm
    ∅H min. a 27mm
    ∅J max. b 7mm
    ∅J min. a 18mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    ROHS compliant Yes
    Specifications
    Tensile Strength 15MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660452048
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
