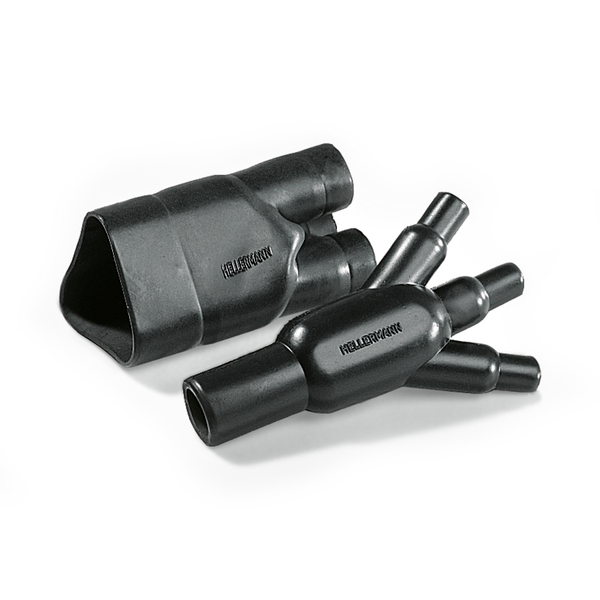

3-Way Outlet Shapes, VG style
Art.-No. 403-06001 | 306-1-B7-PO-X-BK Details

  • Cable strain relief and mechanical protection at harness transition points
  • All outlets clearly marked to aid orientation during installation
Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 306-1-B7-PO-X-BK
Pack Cont. 1pc.
Package Content packed in bag
Product Family Helashrink 300 Series
Product Group 3-Way Outlet Shapes, VG style
Type 306-1-B7
Variant For 3-core cables
Flexibility semi rigid
HW ± 20 % 1.5mm
HW ± 30 % 1.5mm
JW ± 30 % 1.0mm
P ± 10 % 46mm
R ± 10 % 25mm
S ± 10 % 25mm
T ± 10 % 21mm
W ± 20 % 1mm
∅H max. b 6.5mm
∅H min. a 13mm
∅J max. b 3.5mm
∅J min. a 6.5mm
∅J/K/L max. b 3.5mm
∅J/K/L min. a 6.5mm
∅K max. b 3.5mm
∅K min. a 6.5mm
Dielectric Strength 15kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Min. Shrink Temperature - °C +135 °C
Nato number 5970-99-104-5237, 5970-00-897-1488
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
Tensile Strength 13MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660452130
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
