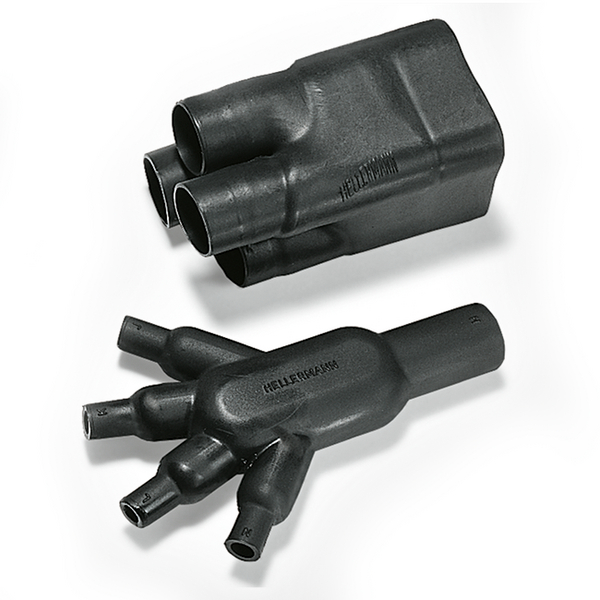

4-Way Outlet Shapes, VG style
Art.-No. 404-11017 | 411-2-J-PO-X-BK |  Details

403-1 supplied / fully recovered.

    • All outlets clearly marked to aid orientation during installation
    • Cable strain relief and mechanical protection at harness transition points
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 411-2-J-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 400 Series
    Product Group 4-Way Outlet Shapes, VG style
    Type 411-2-J
    Variant For 4-core cables
    Flexibility semi rigid
    HW ± 30 % 1.8mm
    P ±10%=overall length 71mm
    R nom. 36.1mm
    ∅H max. b 8.9mm
    ∅H min. a 30mm
    ∅J/K/L/N max. b 4.3mm
    ∅J/K/L/N min. a 15mm
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin GB
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
