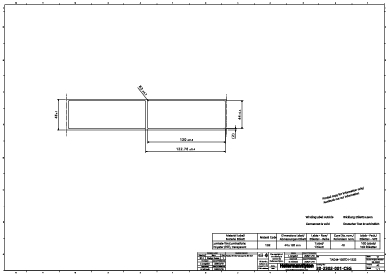

Protective laminate HELATAG, transparent, 120.00x44.00mm, 1000pcs.
Art.-No. 596-12320 | TAG44-120TD1-1232-CL | Details

High-quality labels made of polyester
Suitable for marking of wires and cables in harsh environments as well as a protective laminate or a printed label
Flexible but also tear and impact resistant material
Excellent resistance to alcohol, gasoline, cleaning agents and hydraulic oils
Very temperature and UV-resistant
Rounded edge design gives additional bonding strength

More products in this product group:

Application	Protective laminates are used for the additional protection of printed type labels, for example in hydraulic hoses and for other outdoor installations. Due to its flexibility of the material, Helatag 1232 also can be used for marking or protection of labels on cables and wires. The protective laminates are also used if the contours of a label, for example on glass surfaces or backlit objects, should not be visible (no-label look).
Application Method	The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties	Resistant to water, alcohol, gasoline, cleaning solutions and hydraulic oils.
Colour	Transparent (CL)
Material	Type 1232, Polyester, white transparent, self-laminating (1232)
Mech. material properties	Due to its flexibility particularly suitable for the protection of labels on cables.
PART DESCRIPTION	TAG44-120TD1-1232-CL
Pack Cont.	1000pcs.
Package Content packed in	reel
Product Family	Helatag 1232
Product Group	Protective laminates, thermal transfer
Self adhesive (Yes/No)	Yes
Type	TAG44-120TD1
Variant	Roller form

Adhesive	Acrylic
Curing Temperature	from +2 °C
ELV compliant (Article 4 - 2)	YES
Halogen-free	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +150 °C
Pre-Printed	No
ROHS compliant	Yes
Resistance to	Brake cleaner: 720h (at room temperature), Alcohol 94%: 720h (at room temperature), Hydraulic oil: 720h (at room temperature)
Specifications
UV-Stabilised	Yes
