speedpipe bundles ground tight covered.
Art.-No. 872-00221 | SRV-G_2x12_tc-PE-HD-GN Details

  • resistant to the effects of the surrounding soil
  • easy and time saving branching off without any special tools
  • the combination of smaller dimensions with an internal single duct of a greater diameter is suitable for FTTB/H as well as for FTTN/C
  • suitable for all common types of laying
  • supplied on a wooden one-way spool
Show more
Application speedpipe bundles ground SRV-G tc bundle various colored, thick-walled speedpipe ground by means of a tight outer sheath. Due to the variety of single duct dimensions of the speedpipe ground and their combination within the bundle, you consider spare capacities for the future. Our system concept is reflected in the protective function and the ease of assembly of the tight outer sheath: it is rugged against the impacts of the surrounding soil, but nevertheless can be opened quickly, easily and safely for branching-off from the bundle.
Colour Green (GN)

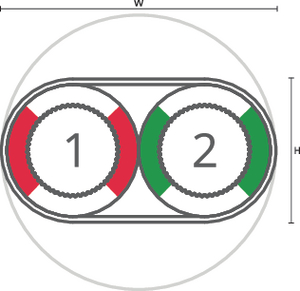

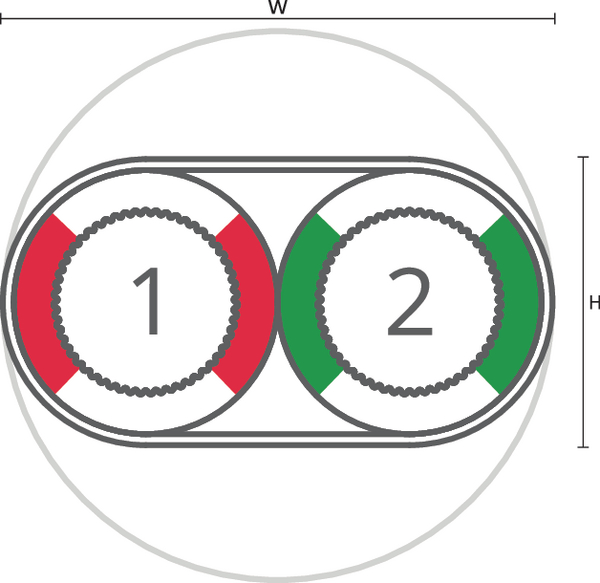

Description 2 speedpipe ground 12x2.0
Material Polyethylene, high density (PE-HD)
PART DESCRIPTION SRV-G_2x12_tc-PE-HD-GN
Pack Cont. 650m
Package Content packed in drum
Product Family SRV-G 2x12 tc
Product Group speedpipe bundles ground tight covered.
Type SRV-G_2x12_tc
Variant DIN
Expansion level Fibre to the Node (FTTN), Fibre to the Curb (FTTC)
Length (L) 650m
Wall (WT) 0.5mm
Weight/Unit 0.160kg
Country of Origin DE
GTIN-13 / EAN 4031051030209
Packaging 1 - Height (m) 1.2m
Packaging 1 - Length (m) 1.2m
Packaging 1 - Qty 650
Packaging 1 - Type drum
Packaging 1 - Volume (m³) 0.52704
Packaging 1 - Weight (kg) 127kg
Packaging 1 - Width (m) 0.366m
Packaging 2 - Height (m) 1.248m
Packaging 2 - Length (m) 1.2m
Packaging 2 - Qty 1950
Packaging 2 - Type pallet
Packaging 2 - Volume (m³) 1.7971
Packaging 2 - Width (m) 1.2m
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
