speedpipe bundles ground tight covered.
Art.-No. 872-00280 | SRV-G_3x14_tc-PE-HD-GN Details

Application speedpipe bundles ground SRV-G tc bundle various colored, thick-walled speedpipe ground by means of a tight outer sheath. Due to the variety of single duct dimensions of the speedpipe ground and their combination within the bundle, you consider spare capacities for the future. Our system concept is reflected in the protective function and the ease of assembly of the tight outer sheath: it is rugged against the impacts of the surrounding soil, but nevertheless can be opened quickly, easily and safely for branching-off from the bundle.
Colour Green (GN)

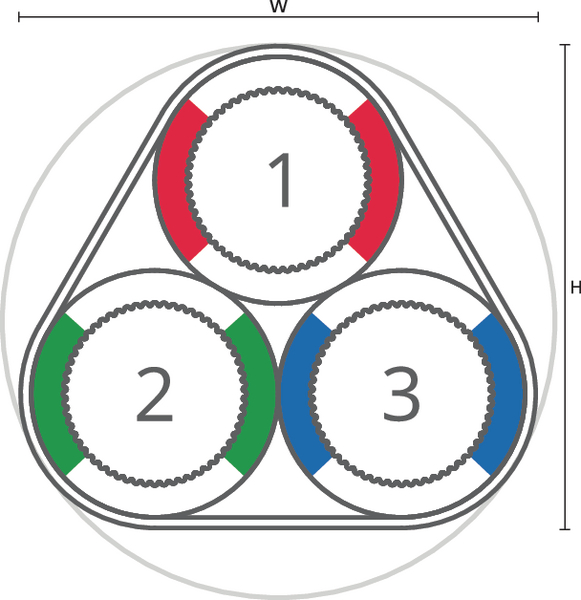

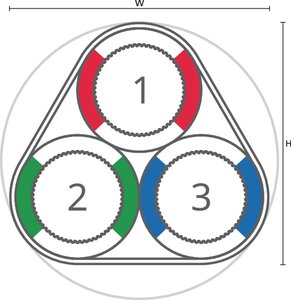

Description 3 speedpipe ground 14x2.0
Material Polyethylene, high density (PE-HD)
PART DESCRIPTION SRV-G_3x14_tc-PE-HD-GN
Pack Cont. 3400m
Package Content packed in drum
Product Family SRV-G 3x14 tc
Product Group speedpipe bundles ground tight covered.
Type SRV-G_3x14_tc
Variant DIN
Expansion level Fibre to the Node (FTTN), Fibre to the Curb (FTTC)
Length (L) 3400m
Wall (WT) 0.6mm
Weight/Unit 0.287kg
Country of Origin DE
GTIN-13 / EAN 4031051030490
Packaging 1 - Height (m) 2.4m
Packaging 1 - Length (m) 2.4m
Packaging 1 - Qty 3400
Packaging 1 - Type drum
Packaging 1 - Volume (m³) 6.912
Packaging 1 - Weight (kg) 1325.8kg
Packaging 1 - Width (m) 1.2m
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
