26/12/2024

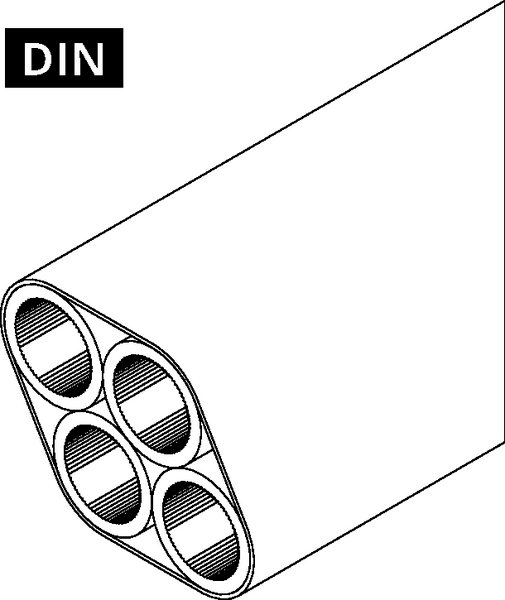

speedpipe bundles ground tight covered.
Art.-No. 872-00342 | SRV-G_4x16_tc-PE-HD-GN/PK |  Details

speedpipe bundles ground SRV-G tc with EZA-t for direct burying.

    • resistant to the effects of the surrounding soil

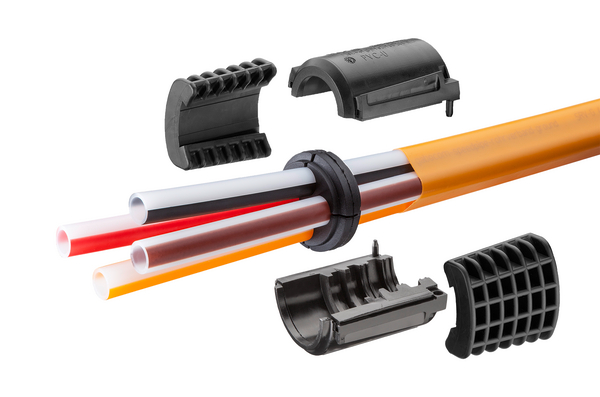

    • easy and time saving branching off without any special tools
    • the combination of smaller dimensions with an internal single duct of a greater diameter is suitable for FTTB/H as well as for FTTN/C
    • suitable for all common types of laying
    • supplied on a wooden one-way spool
    Show more
    Add to watchlist
    Application speedpipe bundles ground SRV-G tc bundle various colored, thick-walled speedpipe ground by means of a tight outer sheath. Due to the variety of single duct dimensions of the speedpipe ground and their combination within the bundle, you consider spare capacities for the future. Our system concept is reflected in the protective function and the ease of assembly of the tight outer sheath: it is rugged against the impacts of the surrounding soil, but nevertheless can be opened quickly, easily and safely for branching-off from the bundle.
    Colour Green (GN), Pink (PK)

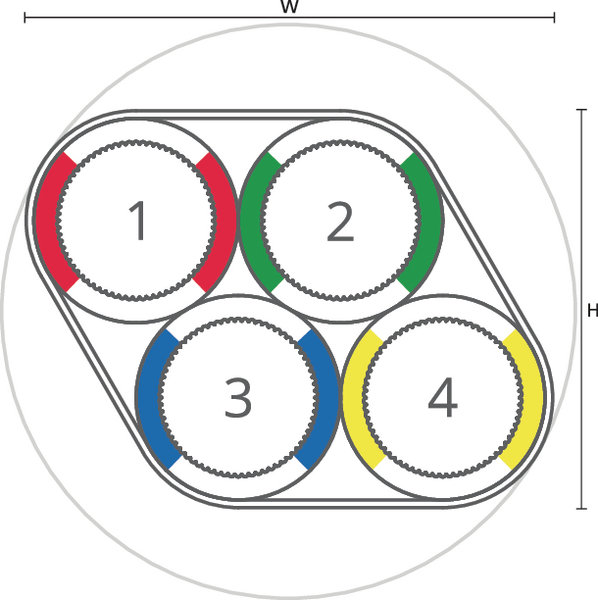

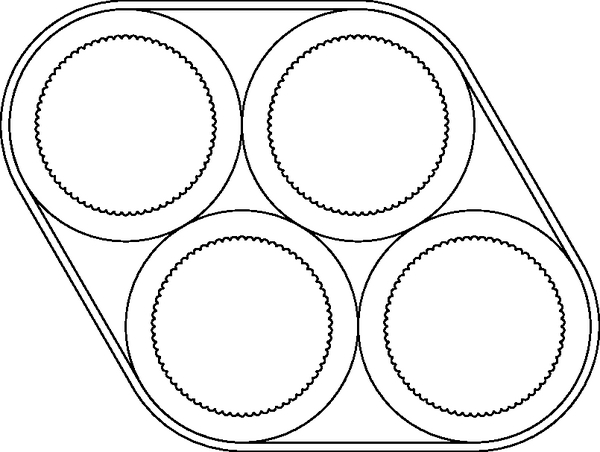

    Description 4 speedpipe ground 16x2.0
    Material Polyethylene, high density (PE-HD)
    PART DESCRIPTION SRV-G_4x16_tc-PE-HD-GN/PK
    Pack Cont. 2100m
    Package Content packed in drum
    Product Family SRV-G 4x16 tc
    Product Group speedpipe bundles ground tight covered.
    Type SRV-G_4x16_tc
    Variant DIN
    Expansion level Fibre to the Node (FTTN), Fibre to the Curb (FTTC)
    Length (L) 2100m
    Wall (WT) 0.6mm
    Weight/Unit 0.421kg
    Federal funding programme Gigabitförderung 2.0
    Country of Origin DE
    GTIN-13 / EAN 4031051036331
    Packaging 1 - Height (m) 2.4m
    Packaging 1 - Length (m) 2.4m
    Packaging 1 - Qty 2100
    Packaging 1 - Type drum
    Packaging 1 - Volume (m³) 6.912m³
    Packaging 1 - Weight (kg) 1234.1kg
    Packaging 1 - Width (m) 1.2m
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
