Accessory, HelaDuct, black, 40pcs. (HTWD-BWR-40X40)
Art.-No. 181-50440 | HTWD-BWR-40X40-PC/ABS-BK |  Details

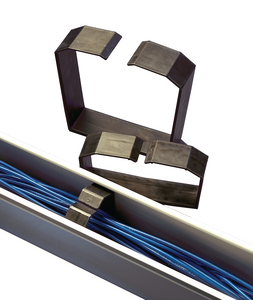

CL Wire securing clamps.

    • Quickly and easily fastend on raised mounting points with a 1/4 turn of a screwdriver
    • Wires easily inserted and firmly held in place
    • Anchor of retainer remains inside raised mounting point and does not protrude below surface of duct base
    • Reduces strain on duct fingers especially at corners and eliminates bulging against sidewall
    • Available for all duct sizes of width and height larger than 40
    • Fits snuggly in duct for minimal loss of installation space
    Show more
    Add to watchlist
    Downloads
    Application HelaDuct Base Wire Retainers HTWD-BWR are anchored securely on the raised mounting points of HTWD-PN and HTWD-PW ducts to allow insertion of wires. Wires are held in place during wiring, for instance in a vertical position or during ceiling installation.
    Adjustable to duct width (Yes/No) No
    Colour Black (BK)
    Current leak stable Yes/No Yes
    Material Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS)
    PART DESCRIPTION HTWD-BWR-40X40-PC/ABS-BK
    Pack Cont. 40pcs.
    Package Content packed in pcs.
    Product Family HelaDuct HTWD-BWR Base Wire Retainers
    Product Group For mounting prior to wiring
    Short Description Wire securing clamp 40x40 mm, PC/ABS, black
    Type HTWD-BWR-40X40
    For cable duct height 40mm
    For cable duct width 40mm
    Height (H) 36mm
    Length (L) 35mm
    Length (L2) 35mm
    Weight/Unit 0.008kg
    Width (W) 20mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -5 °C to +80 °C
    ROHS compliant Yes
    Specifications
    Country of Origin IT
    Customs Number 39269097
    GTIN-13 / EAN 4031026567297
    Packaging 1 - Height (m) 0.174m
    Packaging 1 - Length (m) 0.198m
    Packaging 1 - Qty 40
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0091m³
    Packaging 1 - Weight (kg) 0.320001kg
    Packaging 1 - Width (m) 0.264m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 4320
    Packaging 4 - Type pallet
    Packaging 4 - Weight (kg) 55.56kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC001018
    ETIM 8.0 Key EC001018
    ETIM 9.0 Key EC001018
    UNSPSC Key 39131712
    Show all

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
