Accessory, HelaDuct, black, 100pcs. (SLWR30)
Art.-No. 181-30031 | SLWR30-PA66-BK |  Details

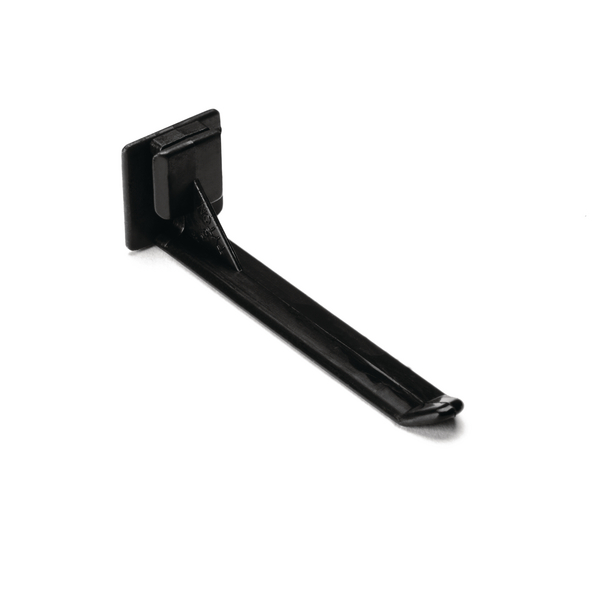

Slotted style wire retainer.

    • Quickly and easily fastend on raised mounting points with a 1/4 turn of a screwdriver
    • Wires easily inserted and firmly held in place
    • Anchor of retainer remains inside raised mounting point and does not protrude below surface of duct base
    • Reduces strain on duct fingers especially at corners and eliminates bulging against sidewall
    • Available for all duct sizes of width and height larger than 40
    • Fits snuggly in duct for minimal loss of installation space
    Show more
    Add to watchlist
    Downloads
    Application HelaDuct Base Wire Retainers HTWD-BWR are anchored securely on the raised mounting points of HTWD-PN and HTWD-PW ducts to allow insertion of wires. Wires are held in place during wiring, for instance in a vertical position or during ceiling installation.
    Adjustable to duct width (Yes/No) No
    Colour Black (BK)
    Current leak stable Yes/No Yes
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION SLWR30-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family HelaDuct HTWD-BWR Base Wire Retainers
    Product Group For mounting prior to wiring
    Type SLWR30
    Length (L) 1.83m
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -5 °C to +80 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 3925902000
    GTIN-13 / EAN 4031026718811
    Packaging 3 - Height (m) 0.1508125m
    Packaging 3 - Length (m) 0.4365625m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0176m³
    Packaging 3 - Width (m) 0.2667m
    ETIM 7.0 Key EC001018
    ETIM 8.0 Key EC001018
    ETIM 9.0 Key EC001018
    UNSPSC Key 39131713
    Show all

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
