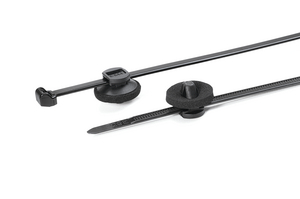

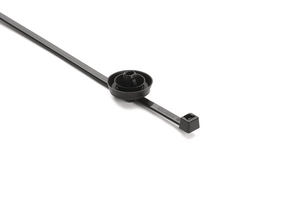

Fixing tie for hole (round), outside serrated, ∅4.0-45.0mm, black, 500pcs.
Nr. articol 150-37799
| T50ROSSFT6.5 16-3MD-PA66HS/PA66HIRHS-BK
|
Detalii
- Pre-assembled 2-piece fixing tie with arrowhead foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressure from various directions
- Seal protects against splash water
Solicitați acum oferta dumneavoastră individuală
Solicitați oferta
Mai multe produse în acest grup de produse:
| Application | The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water. |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Identification Plate Position | none |
| Key product features | sealed |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | T50ROSSFT6.5 16-3MD-PA66HS/PA66HIRHS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | for round holes, sealed |
| Product Group | 2-Pieces Fixing Ties with Arrowhead, with Disc, sealed |
| Short Description | Fixing Tie 200x4.6 mm, 2-piece, arrowhead, heat stabilised, high impact modified, black |
| Tie Closure | plastic pawl |
| Type | T50ROSSFT6.5 16-3MD |
| Variant | Outside Serrated |
|
|
| Bundle Diameter max (metric) | 45.0mm |
| Bundle ∅ | 4.0-45.0mm |
| Bundle ∅ min. | 4.0mm |
| Disc ∅ | 16.0mm |
| Height (H) | 1.3mm |
| Height (H2) | 10mm |
| Length (L) | 200mm |
| Length (L2) | 11.6mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 2.5 - 3.0mm |
| Weight/Unit | 0.002041kg |
| Width (W) | 4.6mm |
| Width (W2) | 9.0mm |
| for Hole ∅ (FH) | 6.1 - 7.0 mm |
| for Panel Thickness min - max | 2.5 - 3 mm |
| for Panel Thickness min - max | 0.1 - 0.1 " |
Descărcare
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026209685 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 1.049635kg |
| Packaging 1 - Width (m) | 0.45m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 7.11781kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 106.404kg |
| Packaging 4 - Width (m) | 0.8m |
