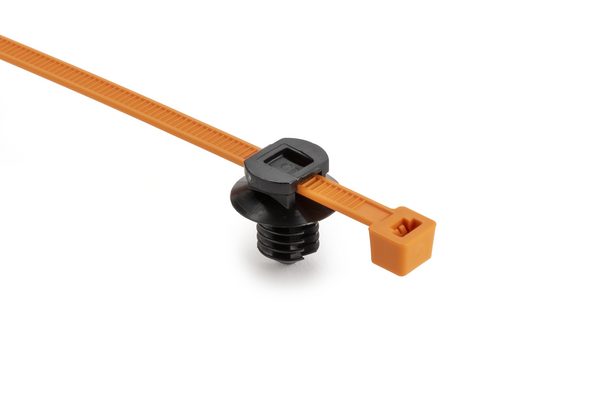

Fixing tie for hole (round), inside serrated, ∅5.0-50.0mm, orange/black, 500pcs.
Art.-No. 156-04030 | T50RFT8-PA66HIRHS/PA66HS-OG/BK |  Details

Disc feature prevents rattling in high-vibration applications and protects against debris ingress.

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Orange (OG), High Voltage (HV), Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50RFT8-PA66HIRHS/PA66HS-OG/BK
    Pack Content 500pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT8
    Product Group 2-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RFT8
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ min. 5.0mm
    Disc ∅ 16.0mm
    Disc ∅ 0.63"
    Height (H) 1.2mm
    Height (H2) 11.5mm
    Length (L) 202mm
    Length (L2) 12.0mm
    Min.Tensile Strength 225N
    Panel Thickness 0.02 - 0.26"
    Panel Thickness max. 0.8 - 6.0mm
    Panel Thickness max. (imperial) 0.26"
    Panel Thickness min. (imperial) 0.02"
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 9.0mm
    Width (W2) 0.35"
    for Hole ∅ (FH) 7.7 - 8.0 mm
    for Panel Thickness min - max 0 - 0.3 "
    for Panel Thickness min - max 0.8 - 6 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026665283
    Packaging 3 - Height (m) 0.210m
    Packaging 3 - Length (m) 0.605m
    Packaging 3 - Qty 2500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0502m³
    Packaging 3 - Weight (kg) 5.6kg
    Packaging 3 - Width (m) 0.395m
    Packaging 4 - Qty 75000
    Packaging 4 - Type pallet
    UNSPSC Key 39121703
