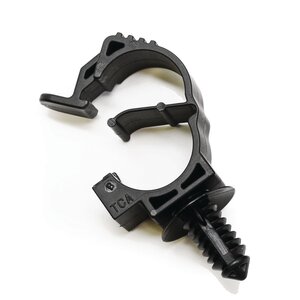

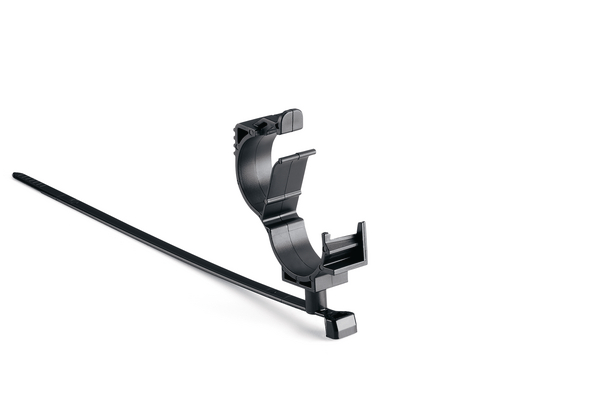

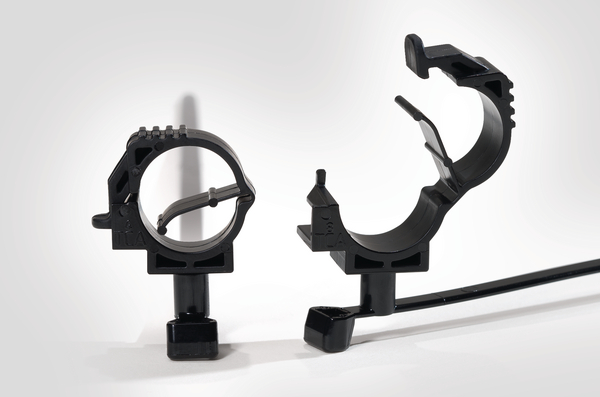

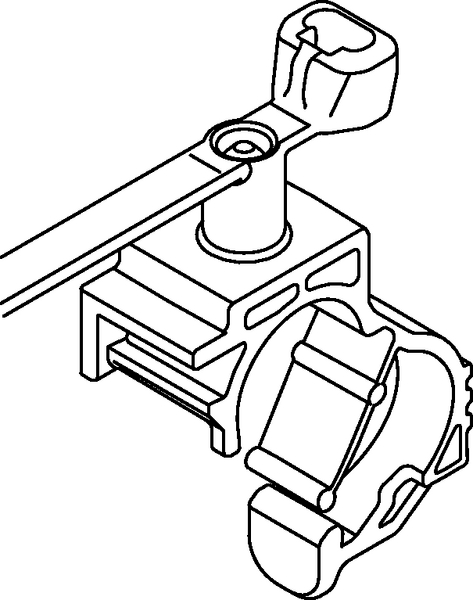

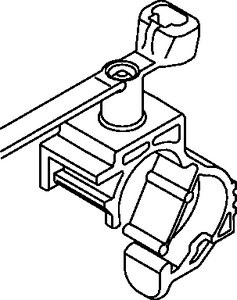

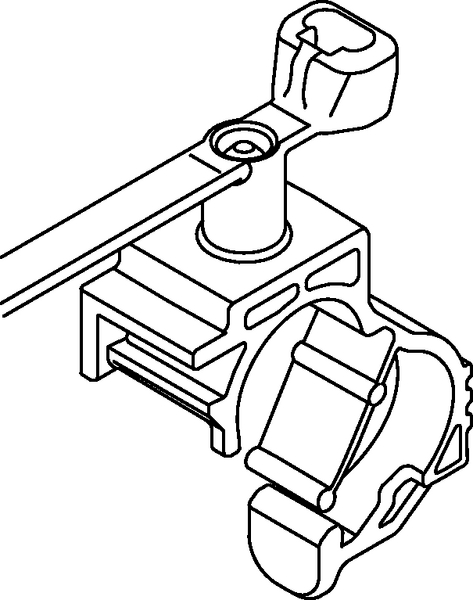

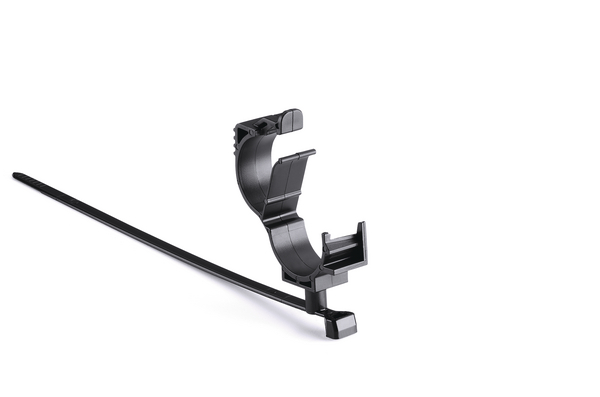

Fixing tie with pipe/tube holder, ∅15.0-19.0mm, black, 1000pcs.
Číslo dílu 156-01690 | T50SMVCLOC15-19-PA66HIRHSUV-BK Podrobnosti na

  • Inside serrated cable tie with closure clip
  • Retaining collar protects of noises of rattle
  • Fixing Clip offers full 360° rotation
  • Routed cable can move in any direction in relation to the fixing point

Vyžádejte si nyní individuální nabídku

Application The fasteners interconnect two different bundles of goods, of various size and type. The mobility of the fixing provides a secure grip and protects the cables or bundles, even in difficult conditions.
Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Cable ∅ max 50.0mm
Cable ∅ min 2.0mm
Colour Black (BK)
Fixation Method Omega Clip
Identification Plate Position none
Key product features lockable, rotatable
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION T50SMVCLOC15-19-PA66HIRHSUV-BK
Pack Cont. 1000pcs.
Package Content packed in carton
Product Family LOC-Series
Product Group 2-piece fixing ties with pipe clip
Type T50SMVCLOC15-19
Attach to Diameter 0.59 - 0.75 "
Attach to Ø 15.0 - 19.0
Bundle Diameter Nom. (ND) 15.0 mm - 19.0 mm
Bundle Diameter max (metric) 19.0mm
Bundle ∅ 15.0-19.0mm
Bundle ∅ min. 15.0mm
Depth (D) 12.0mm
Height (H) 33.4mm
Length (L) 210.0mm
Length (L2) 23.0mm
Min.Tensile Strength 225N
Width (W) 12.0mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin MX
GTIN-13 / EAN 4031026575520
Packaging 1 - Weight (kg) 203.22kg
Packaging 3 - Height (m) 0.4206875m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.1021
Packaging 3 - Weight (kg) 6.28kg
Packaging 3 - Width (m) 0.40005m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121702
