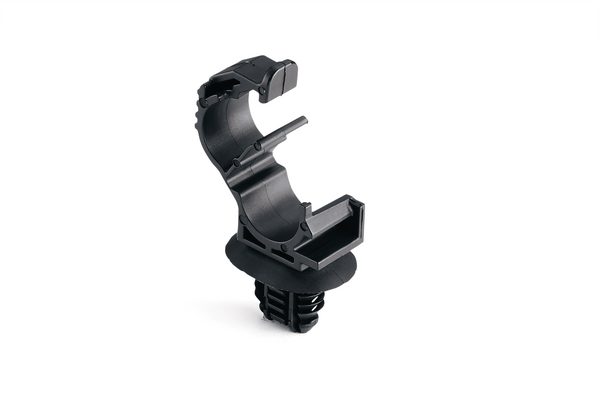

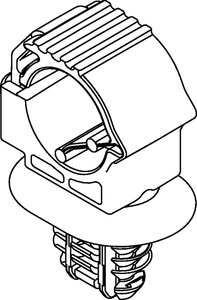

Cable clip for hole (oval)/with pipe/tube holder, T=0.6 - 6.75mm, ∅6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=5.0mm, Dmax=9.0mm, nom∅=5.0 mm - 9.0 mm
Číslo dílu 151-01306
| LOC5-9FTOVAL-PA66HIRHSUV-BK
|
Podrobnosti na
- For fixing and bundling convoluted tubes and pipes
- Suitable for nearly every application
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Key product features | lockable, removable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | LOC5-9FTOVAL-PA66HIRHSUV-BK |
| Pack Cont. | 1700pcs. |
| Package Content packed in | carton |
| Product Family | LOC-Series |
| Product Group | Fixing Elements for Tubes and Pipes |
| Short Description | Harness Clip, close, oval hole 6.2 x 12.2 mm/6.5 x 12.5 mm/6.5 x 13.0 mm/7.0 x 12.0 mm, fir tree, high impact modified, heat and UV-stabilised, black |
| Type | LOC5-9FTOVAL |
| Bundle Diameter Nom. (ND) | 5.0 mm - 9.0 mm |
| Bundle Diameter max (metric) | 9.0mm |
| Bundle ∅ | 5.0-9.0mm |
| Bundle ∅ min. | 5.0mm |
| Depth (D) | 12.0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 34.2mm |
| Length (L) | 25.5mm |
| Min.Tensile Strength | 110N |
| Panel Thickness max. | 0.6 - 6.75mm |
| Weight/Unit | 0.002859kg |
| Width (W) | 12.0mm |
| for Hole ∅ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
Stáhnout
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026510682 |
| Packaging 1 - Height (m) | 0.18m |
| Packaging 1 - Length (m) | 0.5m |
| Packaging 1 - Qty | 1700 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0279m³ |
| Packaging 1 - Weight (kg) | 4.860301kg |
| Packaging 1 - Width (m) | 0.31m |
| Packaging 3 - Height (m) | 0.212725m |
| Packaging 3 - Length (m) | 0.51435m |
| Packaging 3 - Qty | 1700 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 5.480301kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 34000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 130.606kg |
| Packaging 4 - Width (m) | 0.8m |
