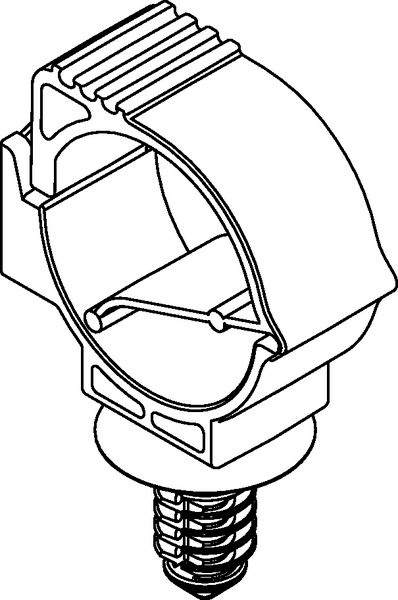

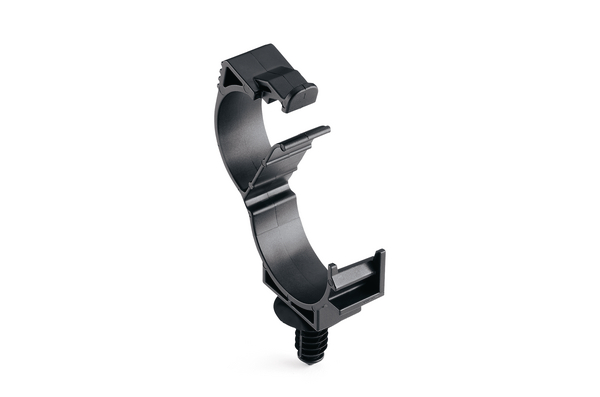

Cable clip
Číslo dílu 151-01371
| LOC20-25FT6.5LG-PA66HIRHSUV-BK
|
Podrobnosti na

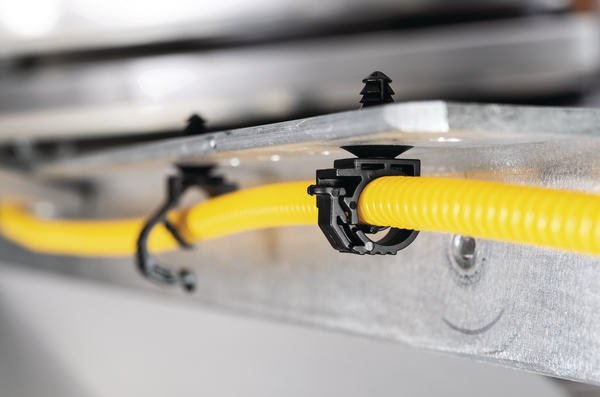

- For fixing and bundling convoluted tubes and pipes
- Suitable for nearly every application
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Key product features | lockable, removable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | LOC20-25FT6.5LG-PA66HIRHSUV-BK |
| Pack Cont. | 1000pcs. |
| Package Content packed in | carton |
| Product Family | LOC-Series |
| Product Group | Fixing Elements for Tubes and Pipes |
| Short Description | Harness Clip, close, round hole 6.35 mm (hexagonal)/6.1 - 6.9 mm, fir tree, high impact modified, heat and UV-stabilised, black |
| Type | LOC20-25FT6.5LG |
| Bundle Diameter Nom. (ND) | 20.0 mm - 25.0 mm |
| Bundle Diameter max (metric) | 25.0mm |
| Bundle ∅ | 20.0-25.0mm |
| Bundle ∅ min. | 20.0mm |
| Depth (D) | 12.0mm |
| Height (H) | 53.6mm |
| Length (L) | 37.2mm |
| Min.Tensile Strength | 110N |
| Panel Thickness max. | 0.6 - 8.25mm |
| Weight/Unit | 0.01kg |
| Width (W) | 12.0mm |
| for Hole ∅ (FH) | 6.1 - 6.6 mm (hexagonal), 6.1 - 7.0 mm |
| for Panel Thickness min - max | 0.6 - 8.3 mm |
Stáhnout
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026521749 |
| Packaging 1 - Height (m) | 0.203m |
| Packaging 1 - Length (m) | 0.598m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.04734m³ |
| Packaging 1 - Weight (kg) | 10.113kg |
| Packaging 1 - Width (m) | 0.39m |
| Packaging 3 - Height (m) | 0.219075m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0529m³ |
| Packaging 3 - Weight (kg) | 10.883kg |
| Packaging 3 - Width (m) | 0.3984625m |
| Packaging 4 - Height (m) | 1.239m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 15000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.189m³ |
| Packaging 4 - Weight (kg) | 184.245kg |
| Packaging 4 - Width (m) | 0.8m |
