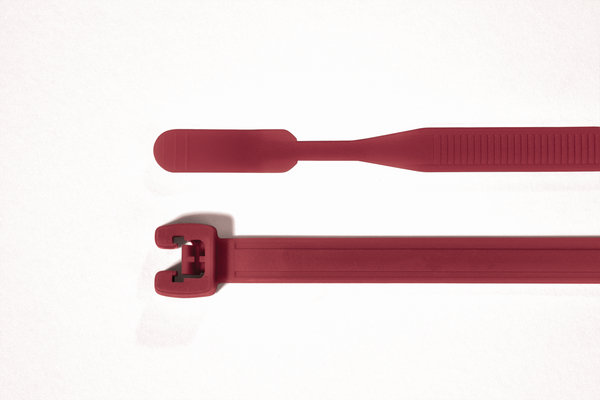

Cable tie inside serrated, 210x4.7mm, ∅3.0-50.0mm, red, 100pcs.
Art.-No. 109-00184 | Q50R-PA66-RD |  Details

Cable tie, Q-tie.

    • Open lock head for quick and easy insertion
    • Integrated pre-locking function
    • More than 25 % faster in application
    • Inside serration for a strong hold around bundles
    • Easy application either manually or with a processing tool
    Show more
    Add to watchlist
    Downloads Datasheet e-Learning
    Application Q-Series cable ties for bundling and securing cables, pipes a.d hoses. The innovative and effective cable ties enable a simple and quick installation.
    Colour Red (RD)
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION Q50R-PA66-RD
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Q-ties
    Product Group Cable Ties with open head
    Releasable Closure (Yes/No) No
    Short Description Cable Tie with open head 210x4.7 red
    Tie Closure plastic pawl
    Type Q50R
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 3.0-50.0mm
    Bundle ∅ min. 3.0mm
    Length (L) 210mm
    Min.Tensile Strength 220N
    Thickness (T) 1.5mm
    Weight/Unit 0.0013kg
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 4031026413129
    Packaging 1 - Height (m) 0.015m
    Packaging 1 - Length (m) 0.325m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00078m³
    Packaging 1 - Weight (kg) 0.130001kg
    Packaging 1 - Width (m) 0.16m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 8.60206kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 193.04kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
