19/11/2024

Cable tie inside serrated, 395.00x4.7mm, ∅52.0mm, natural, 100pcs.
Art.-No. 111-02293 | T50LRR-PA66-NA |  Details

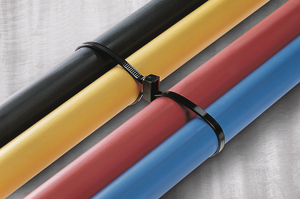

Parallel routing of two cable bundles using DH-Series.

    • Possibility to separate bundles with only one cable tie
    • Cable tie with two heads creating an inside and outside serrated loop
    • Available in a wide range of materials
    • Bundles can be of different diameter
    • Maximum bundle diameter is a maximum combined bundle
    • Easy application either manually or with a processing tool
    Show more
    Add to watchlist

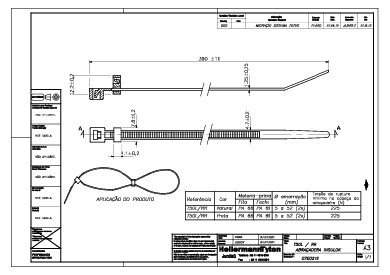

    Downloads Datasheet
    e-Learning
    Application Double loop head ties are ideal for separation of two cable runs without the need for additional cable ties. Additionally these ties are widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).
    Colour Natural (NA)
    Identification Plate Position none
    Key product features for multiple routing
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T50LRR-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family DH/RR-Series
    Product Group Cable Ties for parallel routing
    Releasable Closure (Yes/No) No
    Type T50LRR
    Variant Inside Serrated
    Bundle Diameter max (metric) 52.0mm
    Bundle ∅ 52.0mm
    Length (L) 395.00mm
    Min.Tensile Strength 225N
    Width (W) 4.7mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin BR
    GTIN-13 / EAN 7890176000163
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Show all
