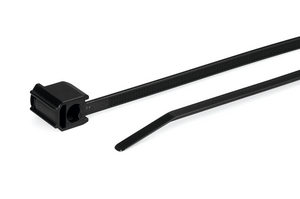

Fixing tie for stud, ∅3.0-35.0mm, black, 1000pcs.
Art.-No. 157-00047 | LFC165-2-PA66HS-BK |  Details

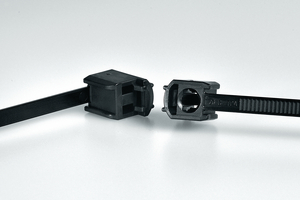

LFC-Series for routing cables close to the stud.

    • 1-piece fixing tie for 5 mm studs
    • Cable tie head always situated in defined position
    • Easy to install without the need for a tool
    • Bundle runs very close next to stud
    • Closed stud retainer protects the bundle against damage
    • Contact surface allows secure bundling with tensioning tool
    Show more
    Package size
    Add to watchlist

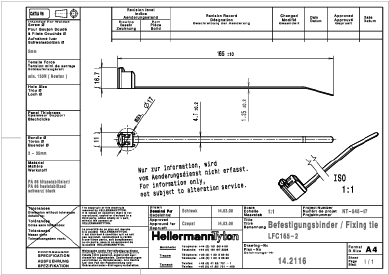

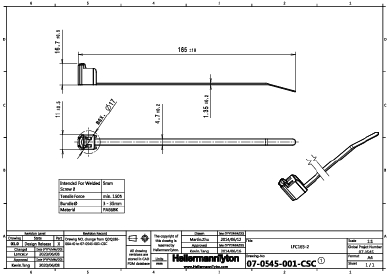

    Downloads CAD-Download Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION LFC165-2-PA66HS-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family LFC-Series for routing close to the stud
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Short Description 1-Piece fixing tie 165x4.7 mm, for weld studs, PA66HS, black
    Tie Closure plastic pawl
    Type LFC165-2
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 3.0-35.0mm
    Bundle ∅ min. 3.0mm
    Length (L) 165mm
    Min.Tensile Strength 150N
    Stud ∅ 5.0 mm
    Thickness (T) 1.3mm
    Weight/Unit 0.00216kg
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 4031026293974
    Packaging 1 - Height (m) 0.105m
    Packaging 1 - Length (m) 0.605m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03049m³
    Packaging 1 - Weight (kg) 2.214kg
    Packaging 1 - Width (m) 0.48m
    Packaging 3 - Height (m) 0.364m
    Packaging 3 - Length (m) 0.563m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0777m³
    Packaging 3 - Weight (kg) 9.817kg
    Packaging 3 - Width (m) 0.379m
    Packaging 4 - Height (m) 1.236m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.187m³
    Packaging 4 - Weight (kg) 138.804kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
