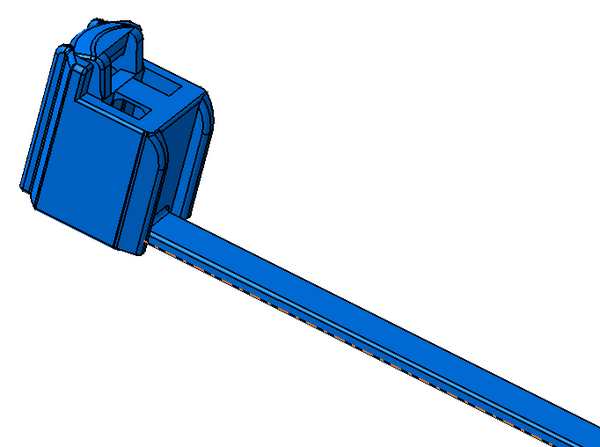

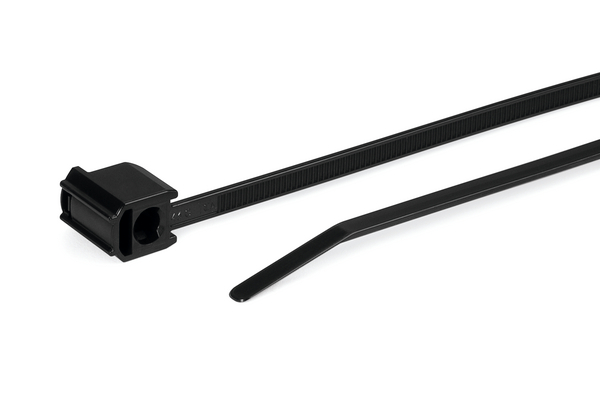

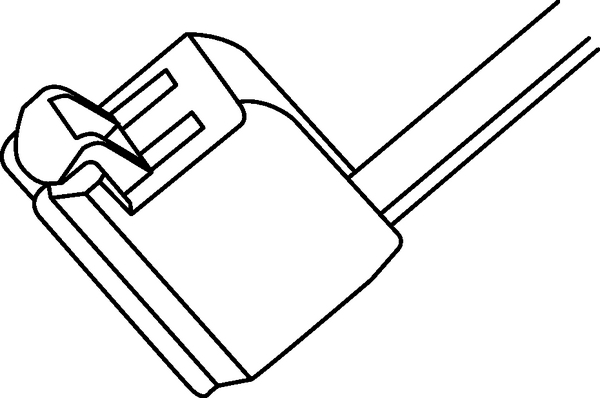

Fixing tie for stud, ∅3.0-35.0mm, black, 500pcs.
Art.-No. 157-00206 | LFC165-2-PA66HS-BK |  Details

LFC-Series for routing cables close to the stud.

    • 1-piece fixing tie for 5 mm studs
    • Cable tie head always situated in defined position
    • Easy to install without the need for a tool
    • Bundle runs very close next to stud
    • Closed stud retainer protects the bundle against damage
    • Contact surface allows secure bundling with tensioning tool
    Show more
    Package size
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION LFC165-2-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family LFC-Series for routing close to the stud
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type LFC165-2
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 3.0-35.0mm
    Bundle ∅ min. 3.0mm
    Length (L) 165mm
    Min.Tensile Strength 150N
    Stud ∅ 5.0 mm
    Thickness (T) 1.35mm
    Weight/Unit 0.00225kg
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026491233
    Packaging 1 - Height (m) 0.08m
    Packaging 1 - Length (m) 0.37m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00844m³
    Packaging 1 - Weight (kg) 1.125001kg
    Packaging 1 - Width (m) 0.285m
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 7.570006kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 172.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
