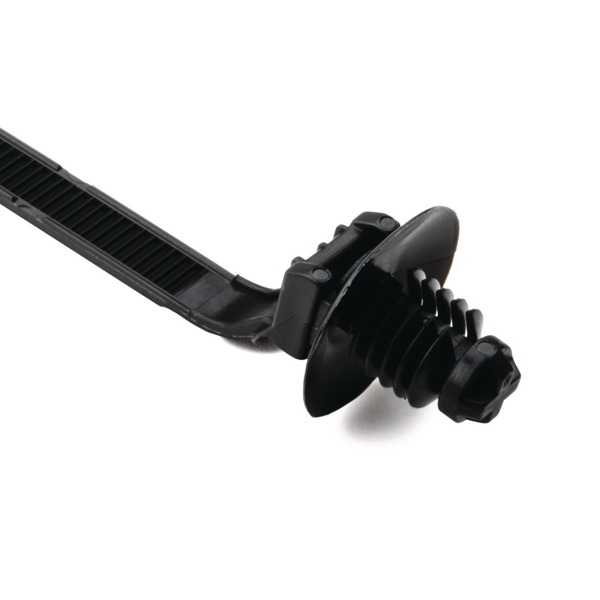

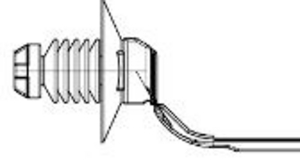

Fixing tie for hole (round), ∅1.6-30.0mm, natural, 100pcs.
Art.-No. 157-00018 | OS170-FT7-HS-PA66HS-NA |  Details

Friction tab inside of fir tree allows tie to sit in mount without falling out prior to installation.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Natural (NA)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION OS170-FT7-HS-PA66HS-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT7
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type OS170-FT7-HS
    Bundle Diameter max (metric) 30.0mm
    Bundle ∅ 1.6-30.0mm
    Bundle ∅ min. 1.6mm
    Disc ∅ 16.0mm
    Hole Depth 9.9mm
    Length (L) 170.0mm
    Length (L2) 15.50mm
    Min.Tensile Strength 147N
    Thickness (T) 1.4mm
    Weight/Unit 0.001451kg
    Width (W) 5.3mm
    Width (W2) 7.5mm
    for Hole ∅ (FH) 6.8 - 7.2 mm
    for Panel Thickness min - max - 4.5
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387927788
    Packaging 1 - Height (m) 0.045m
    Packaging 1 - Length (m) 0.275m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00254m³
    Packaging 1 - Weight (kg) 0.145101kg
    Packaging 1 - Width (m) 0.205m
    Packaging 3 - Height (m) 0.315m
    Packaging 3 - Length (m) 0.505m
    Packaging 3 - Qty 2500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0589m³
    Packaging 3 - Weight (kg) 4.157525kg
    Packaging 3 - Width (m) 0.37m
    Packaging 4 - Height (m) 1.089m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.045m³
    Packaging 4 - Weight (kg) 70.89kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
