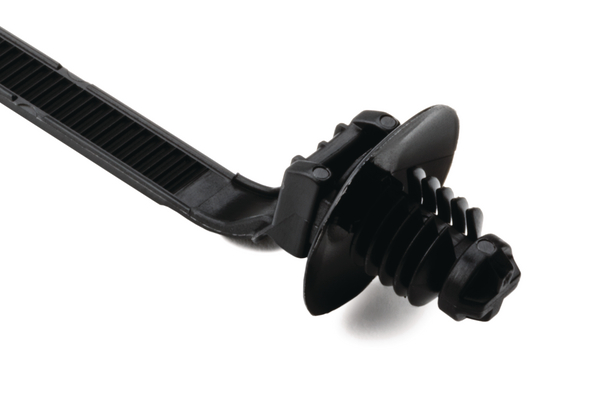

Fixing tie for hole (round), outside serrated, ∅1.6-30.0mm, black, 100pcs.
Art.-No. 157-00017 | OS170-FT7-PA66-BK |  Details

Friction tab inside of fir tree allows tie to sit in mount without falling out prior to installation.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION OS170-FT7-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT7
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type OS170-FT7
    Bundle Diameter max (metric) 30.0mm
    Bundle ∅ 1.6-30.0mm
    Bundle ∅ min. 1.6mm
    Disc ∅ 16.0mm
    Hole Depth 9.9mm
    Length (L) 170.0mm
    Length (L2) 15.5mm
    Min.Tensile Strength 147N
    Panel Thickness max. 0.6 - 4.5mm
    Thickness (T) 1.4mm
    Width (W) 5.3mm
    Width (W2) 7.5mm
    for Hole ∅ (FH) 6.8 - 7.2 mm
    for Panel Thickness min - max 0.6 - 4.5 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin JP
    GTIN-13 / EAN 4944387927771
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
