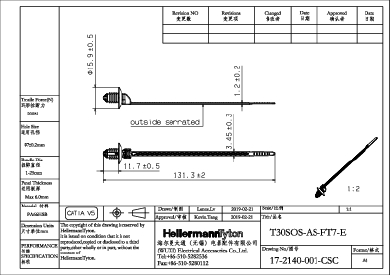

Fixing tie for hole (round), ∅1.0-25.0mm, black, 500pcs.
Art.-No. 157-00491 | T30SOS-AS-FT7-E-PA66HS-BK |  Details

Fir tree foot parts can be used for a variety of panel thicknesses.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T30SOS-AS-FT7-E-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT7
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30SOS-AS-FT7-E
    Variant Outside Serrated with AntiSlip Engraving
    Bundle Diameter max (metric) 25.0mm
    Bundle ∅ 1.0-25.0mm
    Bundle ∅ min. 1.0mm
    Disc ∅ 15.9mm
    Length (L) 131.3mm
    Min.Tensile Strength 200N
    Thickness (T) 1.2mm
    Width (W) 3.45mm
    for Hole ∅ (FH) 6.8 - 7.2 mm
    for Panel Thickness min - max 0.6 - 6 mm
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026640303
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
