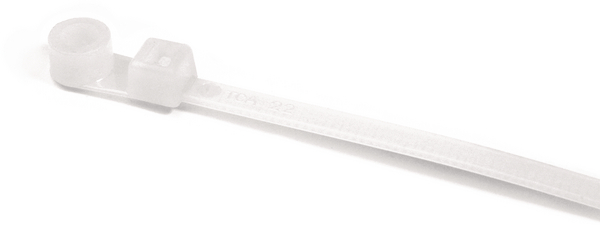

Fixing tie for screw fixation, inside serrated, ∅5.0-102.0mm, natural, 50pcs.
Art.-No. 113-12029 | T120MR-PA66-NA |  Details

One-piece Screw Mount Cable Ties fasten with a screw or bolt to provide secure routing of cable bundles.

    • One-piece bundling and fixing tie
    • Quick and easy installation
    Package size
    Add to watchlist
    Downloads CAD-Download Datasheet
    Application This range of cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. Ideal for fixing cables into 'gaming machines', control panels etc.
    Colour Natural (NA)
    Fixation Method Screw Mount
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type #1/4" (M6) Screw
    PART DESCRIPTION T120MR-PA66-NA
    Pack Cont. 50pcs.
    Package Content packed in bag
    Product Family MR Series
    Product Group 1-piece fixing ties with mounting head for screws
    Releasable Closure (Yes/No) No
    Short Description Fixing Tie 395x7.6 natural
    Tie Closure plastic pawl
    Type T120MR
    Variant Inside Serrated
    Bundle Diameter max (metric) 102.0mm
    Bundle ∅ 5.0-102.0mm
    Bundle ∅ min. 5.0mm
    Cable Tie Head Height (metric) 7.9mm
    Cable Tie Head Length (metric) 28.4mm
    Cable Tie Head Width (metric) 13.4mm
    Height (H) 7.9mm
    Length (L) 395.0mm
    Mechanical Strength 333.6N
    Min.Tensile Strength 535N
    Strap Width max. (G) 0.51"
    Thickness (T) 1.8mm
    Weight/Unit 0.007007kg
    Width (W) 7.6mm
    Width (W2) 13.4mm
    for Hole ∅ (FH) 6.5 mm
    CE Certification Yes
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Specifications
    Specifications UL 62275
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL OCD link Link Link Link Link
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026108285
    Packaging 1 - Height (m) 0.045m
    Packaging 1 - Length (m) 0.56m
    Packaging 1 - Qty 50
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00416m³
    Packaging 1 - Weight (kg) 0.350351kg
    Packaging 1 - Width (m) 0.165m
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 7.62702kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 20000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 173.54kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
