Fixing tie for hole (square), inside serrated, ∅1.0-15.0mm, black, 500pcs.
Art.-No. 156-00675 | T18RCDL-PA66HS/PA6GF30-BK |  Details

The holding tab increases the tensile strength additionaly.

    Add to watchlist
    Downloads Datasheet
    Application Due to the tie's reduced installation height it is ideal for use wherever space is at a premium.

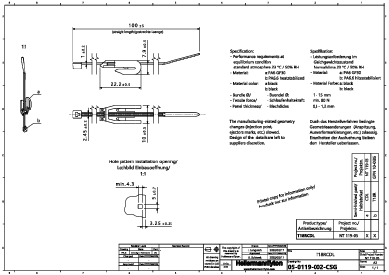

    Application Method Please have a look on the technical drawing for information about the needed hole pattern installation opening.
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
    Colour Black (BK)

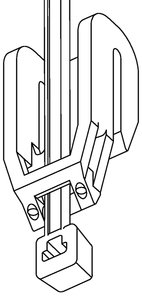

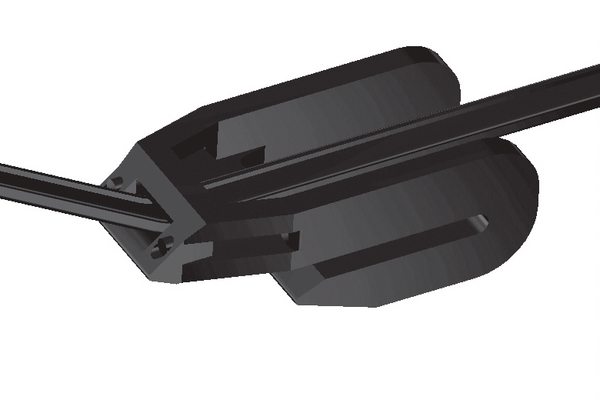

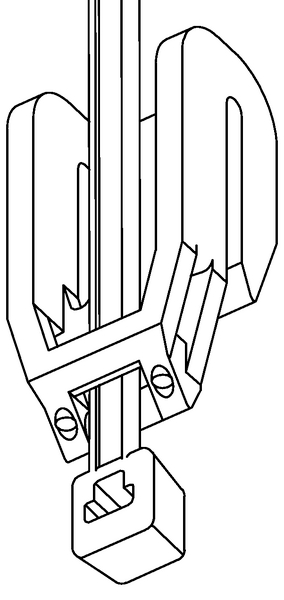

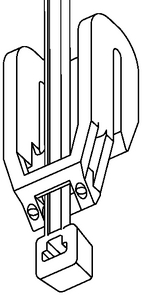

    Description This EdgeClip is very easy to mount. The holding tab snaps into the drill hole very securely. You will hear and feel the connection being made during mounting. Cable ties from a variety of product series and varying in terms of their dimensions and materials can be used in conjunction with this fixing element.
    Fixation Method Edge Clips without metal insert
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6, glass-fibre reinforced (PA6GF30)
    PART DESCRIPTION T18RCDL-PA66HS/PA6GF30-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for drill holes
    Product Group 2-piece fixing ties for edges
    Tie Closure plastic pawl
    Type T18RCDL
    Variant Inside Serrated
    Bundle Diameter max (metric) 15.0mm
    Bundle ∅ 1.0-15.0mm
    Bundle ∅ min. 1.0mm
    Height (H) 1.0mm
    Height (H2) 22.2mm
    Length (L) 100.0mm
    Min.Tensile Strength 80N
    Width (W) 2.45mm
    Width (W2) 7.9mm
    for Panel Thickness min - max 0.8 - 1.2 mm
    Operating Temperature -40 °C to +100 °C
    Operating Temperature Foot Part (Metric) -40 °C to +100 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026413563
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
