Fixing tie for edge, ∅1.5-35.0mm, natural/black, 500pcs.
Art.-No. 156-01015 | T30REC19-PA46/PA66HIRHS-NA/BK |  Details

    Add to watchlist
    Downloads Datasheet
    Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Natural (NA), Black (BK)
    Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 3.0 to 6.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
    Fixation Method EdgeClip, top, assembled, 2 piece
    Identification Plate Position none
    Key product features for narrow bundling
    Material Polyamide 4.6 (PA46), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T30REC19-PA46/PA66HIRHS-NA/BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family EdgeClip-Series, 3.0 - 6.0 mm, top fixing
    Product Group 2-piece fixing ties for edges
    Type T30REC19
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm

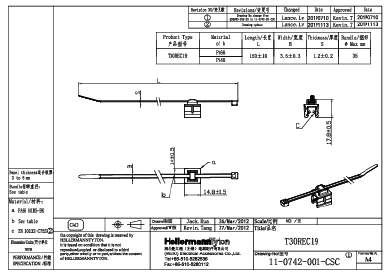

    Height (H) 1.1mm
    Height (H2) 17.8mm
    Length (L) 148.0mm
    Length (L2) 14.8mm
    Min.Tensile Strength 135N
    Panel Thickness max. 3.0-6.0mm
    Width (W) 3.6mm
    Width (W2) 14.0mm
    for Panel Thickness min - max 3 - 6 mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026454115
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
