14/11/2024

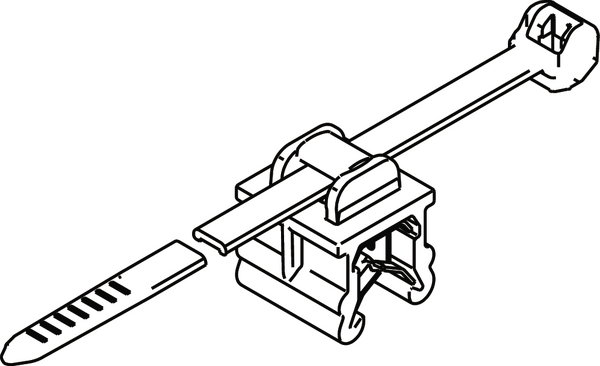

Fixing tie for edge, inside serrated, ∅5.0-45.0mm, black, 100pcs.
Art.-No. 156-00384 | T50REC20-PA66HS/PA66HIRHS-BK |  Details

    Package size
    Add to watchlist
    Downloads Datasheet
    Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Cable Tie Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    Colour Black (BK)
    Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 3.0 to 6.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
    Fixation Method EdgeClip, top, assembled, 2 piece
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Steel C75S (C75S)
    Identification Plate Position none
    Key product features for narrow bundling
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50REC20-PA66HS/PA66HIRHS-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family EdgeClip-Series, 3.0 - 6.0 mm, top fixing
    Product Group 2-Piece Fixing Ties for Edges, 3,0 - 6,0 mm
    Releasable Closure (Yes/No) No
    Type T50REC20
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 5.0-45.0mm
    Bundle ∅ min. 5.0mm
    Height (H) 1.2mm
    Height (H2) 17.8mm
    Length (L) 202mm
    Length (L2) 14.8mm
    Min.Tensile Strength 225N
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 14.0mm
    for Panel Thickness min - max 3 - 6 mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387951707
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
